MAN Intercooler 51095007194

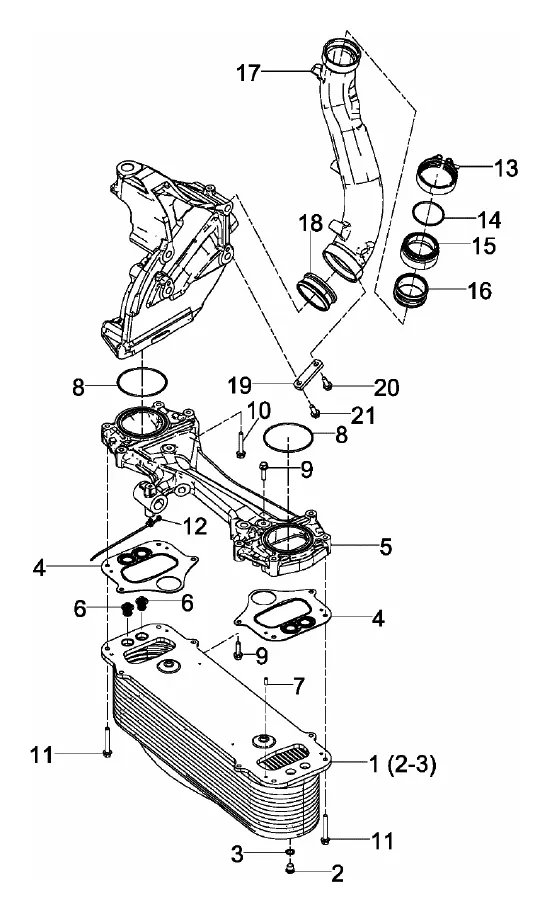

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.09500-7194, 51.09500.7194
- Description
- Intercooler HD
- Replaces
- 51095007189
- Engine model
- MAN D2862 LE2.., MAN D2862 LE22X/22X
- Weight
- 10.56 kg
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN intercooler for the D2862. External fouling is the failure mode that receives least attention and costs most quietly. On installations where the cooler has an air-side surface exposed to the engine room, dust, oil mist and salt build up between the fins and insulate them — reducing heat transfer without producing any leak, any noise or any fault code. The engine simply runs a little hotter in the inlet and a little less efficiently. Inspecting and cleaning the external surface is straightforward with the unit accessible and is worth including in a major service rather than waiting for a symptom that will never clearly arrive. Compressed air from the clean side outwards, at moderate pressure, is the safe method; a pressure washer at close range flattens fins permanently.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51095007189 | intercooler HD | 1 |
| 1 | 51095007194 | intercooler | 1 |
| 2 | 06080490044 | drain plug M12X1,5-ST-MAN183-B1 | 1 |
| 3 | 06566310234 | seal 12,3X18X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 4 | 51099050098 | gasket intercooler | 2 |
| 5 | 51095400229 | connection plate F HD LLK | 1 |
| 6 | 51064020100 | thermostat | 2 |
| 7 | 06221201008 | pin 6X16-ST | NB |
| 8 | 06563433237 | O-ring 96X3B-FPM1-70-GN | 2 |
| 9 | 06032158306 | hex flange bolt M8X30-8.8-MAN183-B1 | 2 |
| 9 | 06032168306 | hex flange bolt M8X30-10.9-MAN183-B1 | 1 |
| 10 | 06032168310 | hex flange bolt M8X50-10.9-MAN183-B1 | 1 |
| 11 | 06032168312 | hex flange bolt M8X60-10.9-MAN183-B1 | 7 |
| 12 | 51974010557 | cable binder 4,7X202/6,5-7-PA4.6 | 1 |
| 13 | 51974450076 | profiled clamp 77X20X1-W1 | 1 |
| 14 | 06569362423 | O-ring 60X3N-FKM1-70-GN | 1 |
| 15 | 51094120404 | air intake manifold | 1 |
| 16 | 51981820121 | extension tube | 1 |
| 17 | 51094120327 | charge-air pipe | 1 |
| 18 | 51981820105 | extension tube | 1 |
| 19 | 51974850475 | bracket | 1 |
| 20 | 06032168305 | hex flange bolt M8X25-10.9-MAN183-B1 | 1 |
| 21 | 06032168304 | hex flange bolt M8X20-10.9-MAN183-B1 | 1 |
Alternatives to this part
| Type · Origin | Price | Saving | Lead time | Availability | Add to cart |
|---|---|---|---|---|---|
| OEMSlovakia1 dayIn stock | €1,175.27 | −22% | 1 day | In stock | |
| AftermarketGermany1 dayIn stock | €1,312.58 | −13% | 1 day | In stock |
Per piece, excluding VAT and freight. Saving is against the price of this part. We confirm the exact number and fit before you order.
