MAN Intercooler 51095007196

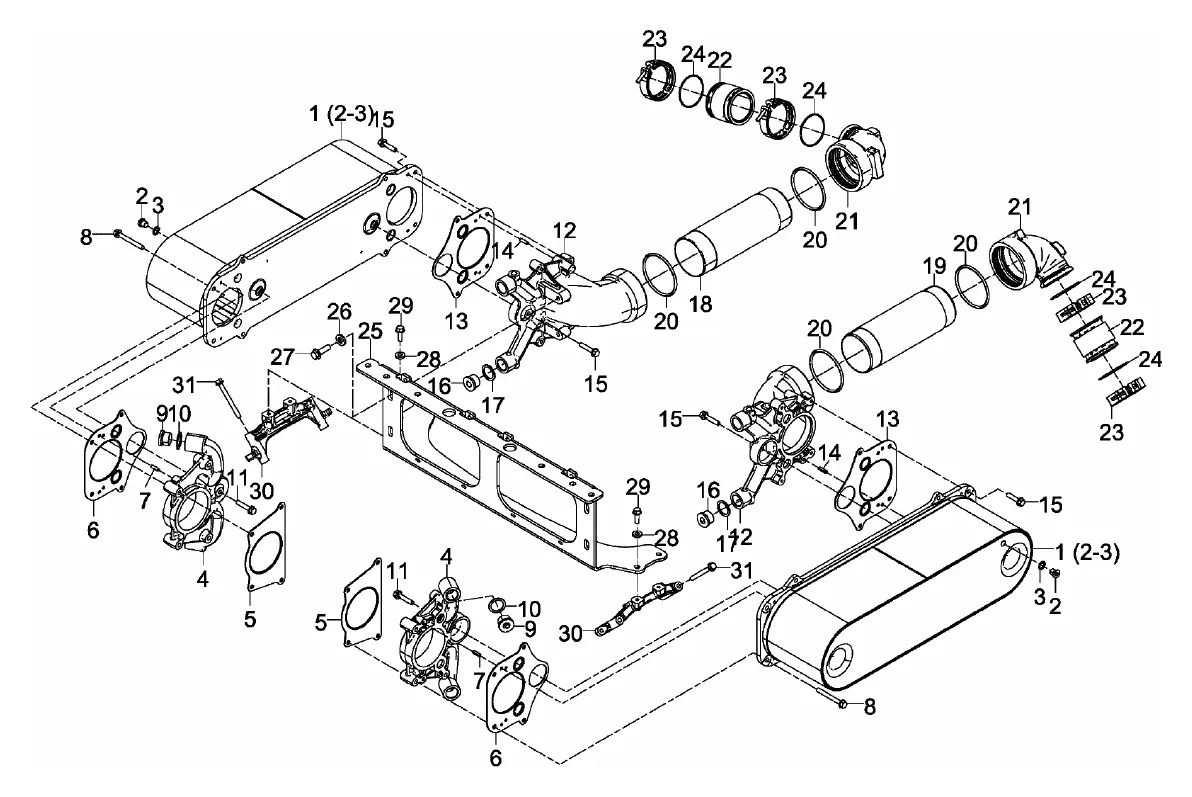

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.09500-7196, 51.09500.7196
- Replaces
- 51095007160, 51095007168
- Engine model
- MAN D2676 LE6.., MAN D2676 LE621and 9 more
- Weight
- 12.9 kg
- Country of origin
- Germany
- Condition
- New
Numbers this part has been supplied under
- 51095007168
- 51095007160
- 51095007151
- 51095007196now
- 51095007168
- 51095007160
- 51095007151
- 51095007147
- 51095005022
- 51095005019
- 51095005018
About this part
Genuine MAN intercooler covering the D2676, D2862 and D2868 families. Where one cooler serves several engines, the shared specification is the heat rejection requirement , and nothing about the engines' architecture — a six, a V8 and a V12 can share a cooler where their charge air mass flow and temperature are comparable. That is useful for stock and for sourcing, and it means a cooler removed from one engine type is a legitimate spare for another. What does not transfer is the mounting and the ducting arrangement, so confirm the installation details ; assumption is what catches people out the whole assembly is interchangeable. Photograph the ducting arrangement before removal, since it is the part that differs between installations and the part nobody remembers accurately.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51095007160 | intercooler | 2 |
| 1 | 51095007168 | intercooler | 2 |
| 1 | 51095007196 | intercooler | 2 |
| 2 | 06080490044 | drain plug M12X1,5-ST-MAN183-B1 | 1 |
| 3 | 06566310234 | seal 12,3X18X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 4 | 51095400205 | connection plate F LLK | 2 |
| 5 | 51099050091 | Intercooler seal | 2 |
| 6 | 51099050090 | Intercooler seal | 2 |
| 7 | 06222201110 | spiral dowel pin 6X20-ST | 4 |
| 8 | 06032168314 | hex flange bolt M8X70-10.9-MAN183-B1 | 8 |
| 9 | 06080420609 | drain plug M26X1,5-ST-A3C | 2 |
| 10 | 06566310112 | seal 26,7X34,93X2-ST/FPM1-80 with elastomer lip | 2 |
| 11 | 06032168307 | hex flange bolt M8X35-10.9-MAN183-B1 | 2 |
| 12 | 51094120191 | intercooler elbow EINTRITT LLK | 2 |
| 13 | 51099050090 | Intercooler seal | 2 |
| 14 | 06222201110 | spiral dowel pin 6X20-ST | 4 |
| 15 | 06032168307 | hex flange bolt M8X35-10.9-MAN183-B1 | 10 |
| 16 | 06080420609 | drain plug M26X1,5-ST-A3C | 2 |
| 17 | 06566310112 | seal 26,7X34,93X2-ST/FPM1-80 with elastomer lip | 2 |
| 18 | 51981820049 | extension tube | 1 |
| 19 | 51981820177 | extension tube intercooler elbow F LADELUFT | 1 |
| 20 | 06569363004 | O-ring 86X5N-FPM1-70-GN | 4 |
| 21 | 51094110664 | intercooler elbow | 2 |
| 22 | 51094110717 | charge-air pipe | 2 |
| 23 | 51974450076 | profiled clamp 77X20X1-W1 | 4 |
| 24 | 06569362479 | O-ring 63X2,5-FPM1-70-GN | 4 |
| 25 | 51095405020 | bracket intercooler | 1 |
| 26 | 06152320106 | washer 10,5X25X4-ST50-2 | 4 |
| 27 | 06032168407 | hex flange bolt M10X35-10.9-MAN183-B1 | 4 |
| 28 | 51907100636 | washer 9X19X4 | 4 |
| 29 | 06032168305 | hex flange bolt M8X25-10.9-MAN183-B1 | 4 |
| 30 | 51094400255 | bracket intercooler elbow F LLK | 2 |
| 31 | 06032168315 | hex flange bolt M8X80-10.9-MAN183-B1 | 4 |
Alternatives to this part
| Type · Origin | Price | Saving | Lead time | Availability | Add to cart |
|---|---|---|---|---|---|
| OEMSlovakia1 dayIn stock | €818.61 | −43% | 1 day | In stock | |
| AftermarketTurkey25 days | €1,323.87 | −7% | 25 days | — | |
| AftermarketGermany1 dayIn stock | €1,325.20 | −7% | 1 day | In stock | |
| Aftermarket1 dayIn stock | €1,558.03 | — | 1 day | In stock |
Per piece, excluding VAT and freight. Saving is against the price of this part. We confirm the exact number and fit before you order.
