MAN Crankshaft 51021010801

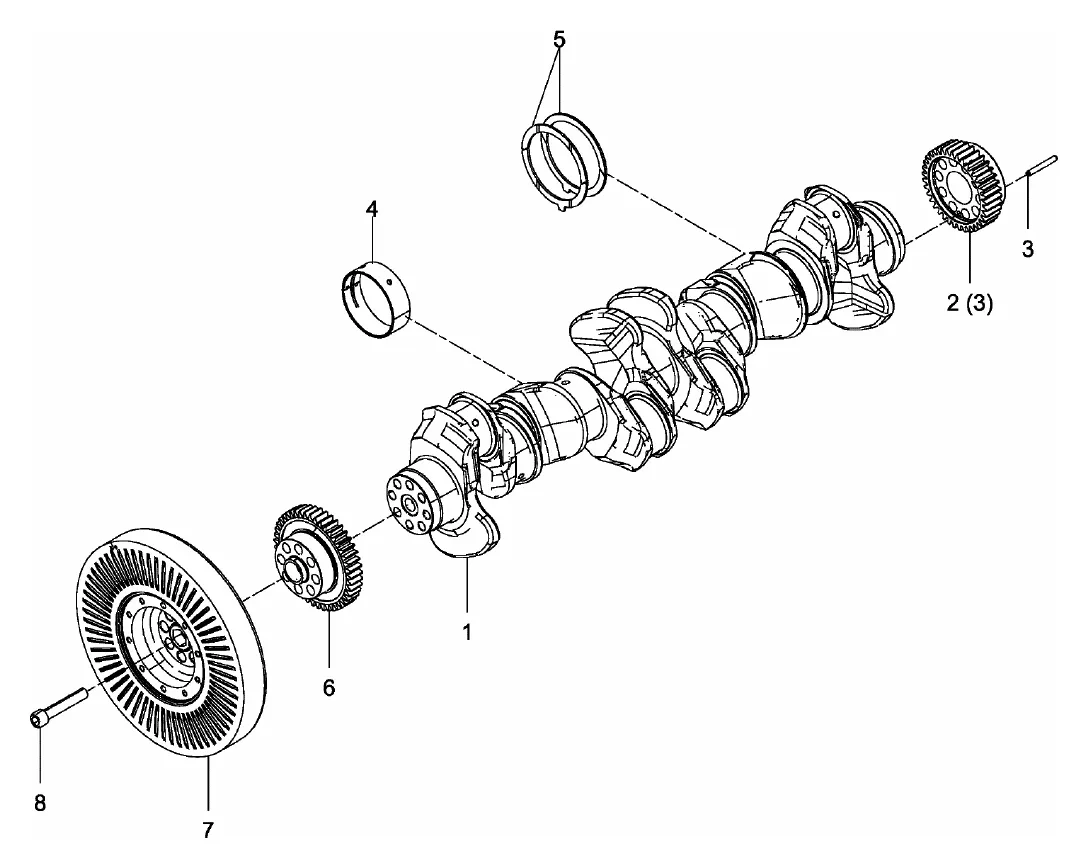

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.02101-0801, 51.02101.0801
- Description
- Engine crankshaft
- Replaces
- 51021010803, 51021010834, 51021010859 and 1 more
- Engine model
- MAN D2676 13X, MAN D2676 14Xand 22 more
- Weight
- 107.2 kg
- Country of origin
- Germany
- Condition
- New
Numbers this part has been supplied under
- 51021010632
- 51021010834
- 51021010801now
About this part
Genuine MAN crankshaft for the D2676, a 12.4-litre in-line six running a 126 mm bore against a 166 mm stroke and rated from 221 to 625 kW. That stroke is long relative to the bore, which gives the engine its low-speed pulling character and also means the rod journals sit further out from the shaft centreline — more leverage on every firing pulse, and a good reason to treat oil pressure and oil cleanliness on this engine as crankshaft maintenance rather than routine servicing. Journal damage from contaminated oil or a failed bearing is usually recoverable: the journal is ground to a defined undersize and run with correspondingly oversized shells. Fatigue cracking is not recoverable and condemns the shaft. Where the engine has been run with low oil pressure, inspect the rod journals specifically, as they load up before the mains do.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51021010632 | crankshaft | 1 |
| 1 | 51021010801 | Engine crankshaft | 1 |
| 1 | 51021010834 | Engine crankshaft WW-0801/-0803 | 1 |
| 2 | 51021156094 | timing gear - crankshaft flywheel | 1 |
| 2 | 51021156112 | timing gear - crankshaft flywheel | 1 |
| 3 | 06222201222 | spiral dowel pin 8X60-ST | 1 |
| 4 | 51011136082 | main bearing normal | 7 |
| 5 | 51011146110 | thrust washer assembly normal | 2 |
| 5 | 51011146116 | thrust washer set | 2 |
| 6 | 51021150278 | timing gear - crankshaft opposite flywheel end | 1 |
| 6 | 51021150282 | timing gear - crankshaft opposite flywheel end | 1 |
| 7 | 51022006023 | crankshaft vibration damper | 1 |
| 7 | 51022006047 | crankshaft vibration damper | 1 |
| 7 | 51022006054 | crankshaft vibration damper | 1 |
| 8 | 06020990417 | cylinder screw M16X1,5X90-10.9-MAN183-B1 with hexagon socket | 8 |
Alternatives to this part
| Type · Origin | Price | Saving | Lead time | Availability | Add to cart |
|---|---|---|---|---|---|
| AftermarketBrazil14 days | €2,135.00 | −61% | 14 days | — | |
| AftermarketGermany8 days | €2,331.43 | −57% | 8 days | — | |
| Aftermarket1 dayIn stock | €2,370.21 | −57% | 1 day | In stock |
Per piece, excluding VAT and freight. Saving is against the price of this part. We confirm the exact number and fit before you order.
