MAN Piston 51025006099

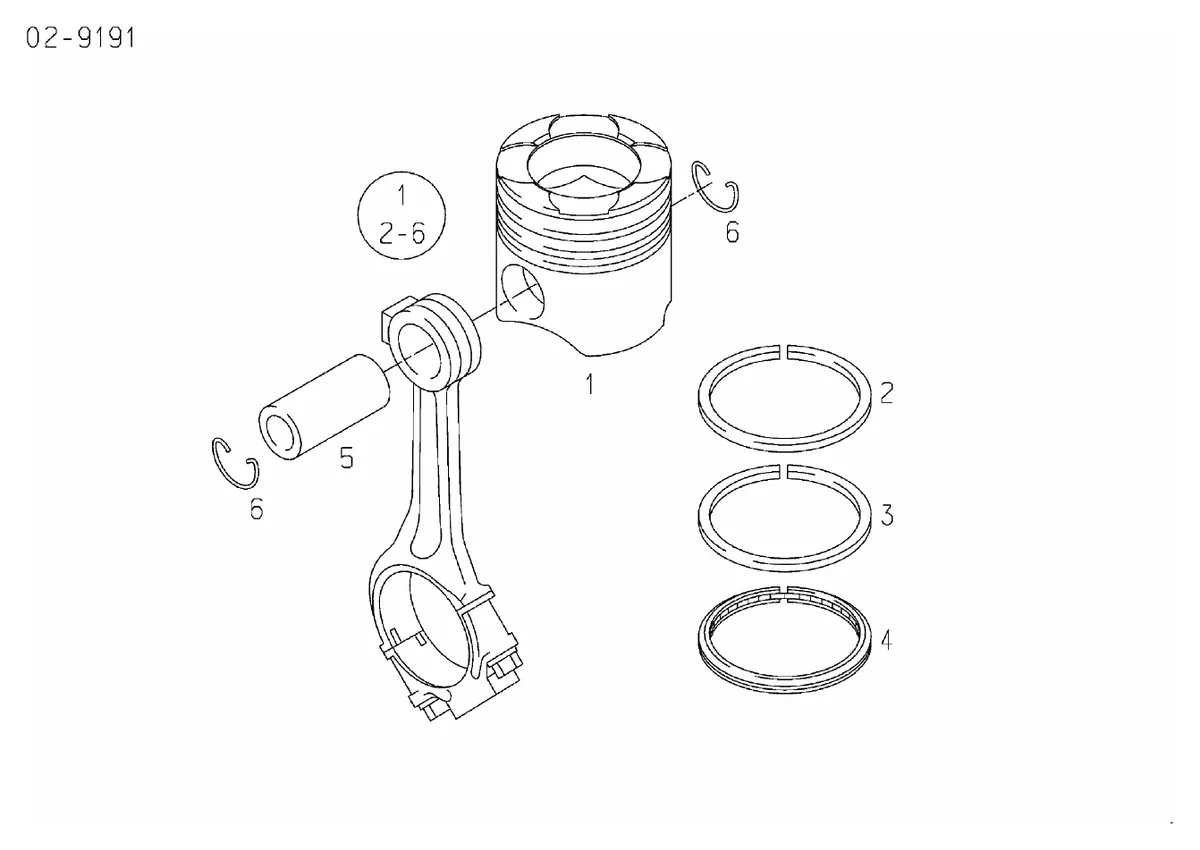

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.02500-6099, 51.02500.6099
- Description
- Stationary engine piston 128.00 mm normal
- Engine model
- MAN D2842 LE422, MAN D2842 LE423and 5 more
- Weight
- 3.96 kg
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN piston for the D2842 and D2848. A piston seals its cylinder through the ring pack rather than through its own body: the rings hold compression above and keep combustion gas out of the crankcase below, and the piston's job is to carry them and transmit the force. That distinction explains the symptoms of wear. Worn or stuck rings let gas past into the crankcase, raising crankcase pressure and producing blow-by, and let oil past in the other direction into the combustion chamber. The result is blue smoke, rising oil consumption and falling compression appearing together rather than singly — which is why any one of those symptoms on its own usually points somewhere else and the combination points here.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51025006099 | stationary engine piston 128,00 MM normal | 12 |
| 1 | 51025006110 | stationary engine piston assembly undersize 0,20 mm 128,00 MM | 12 |
| 1 | 51025006111 | stationary engine piston assembly undersize 0,40 mm 128,00 MM | 12 |
| 2 | 51025030811 | keystone ring | 12 |
| 3 | 51025030784 | taper face compression ring | 12 |
| 4 | 51025030806 | bevelled oil scraper ring | 12 |
| 5 | 51025020119 | piston pin | 12 |
| 6 | 51908100017 | snap ring 57X2-FST | 24 |
Looking for an alternative?
Where available, we quote OEM-supplier or aftermarket alternatives separately, with price, lead time and warranty shown before you order.
