MAN Raw Water Pump 51065007081

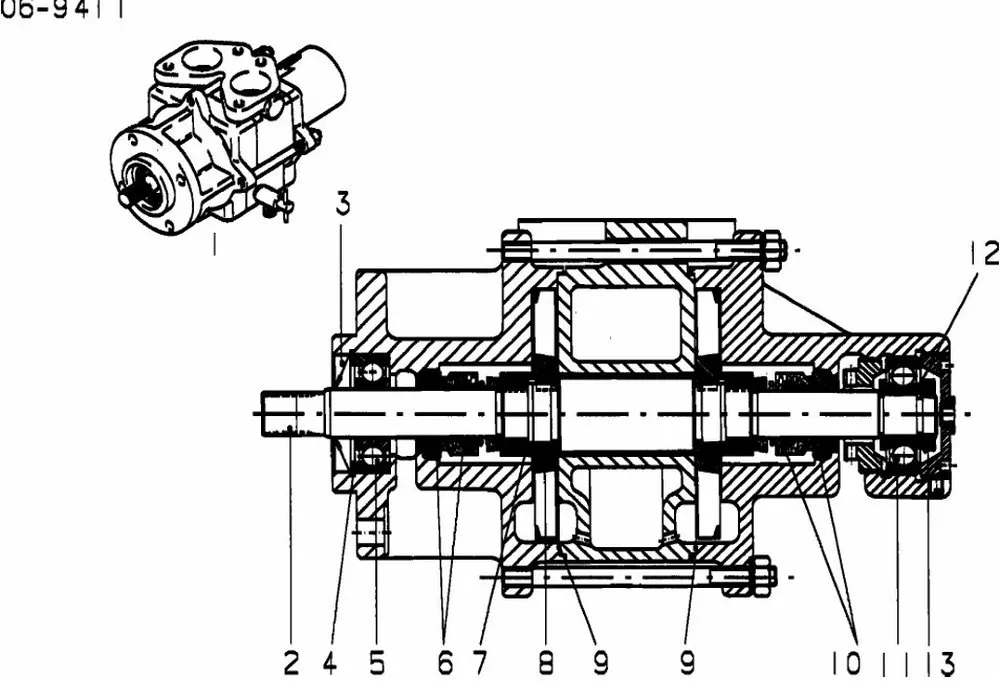

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06500-7081, 51.06500.7081
- Engine model
- MAN D2866 LE, MAN D2866 LE30and 6 more
- Weight
- 11.8 kg
- Dimensions
- 150 × 143 × 300 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN raw water pump for the D2866. Impeller life is shortened more by what the water carries than by hours run. Sand and silt in shallow or estuarine water abrade the vanes and the wear plate, weed and plastic debris jam between vane and cam, and a boat operating in clean deep water will see substantially longer impeller life than one working a river mouth or a drying berth. That is worth factoring into the service interval rather than applying a single figure: operators in dirty water sensibly halve it. The strainer is the first line of defence and is only effective if it is actually inspected. Fit a clear-topped strainer where the installation allows it, since a strainer that can be inspected at a glance actually gets inspected.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51065007081 | raw water pump | 1 |
| — | 51981250003 | drain valve raw water pump | 1 |
| 2 | 51065050058 | drive shaft | 1 |
| 2 | 51065050073 | drive shaft raw water pump | 1 |
| 3 | 51965010407 | radial shaft seal 20X47X7-NB | 1 |
| 4 | 06290200128 | circlip 47X1,75-ZNPHR5F | 1 |
| 5 | 51934100015 | ball bearing 6204-2RSRZ27YC3 | 1 |
| 6 | 51065200056 | Axial face seal | 1 |
| 7 | 51908010075 | lock washer | 2 |
| 8 | 51065060082 | Impeller | 2 |
| 9 | 51069010093 | Coolant pump seal | 2 |
| 9 | 51069010094 | Coolant pump seal | 2 |
| 10 | 51065200055 | Axial face seal | 1 |
| 11 | 06314600402 | ball bearing 6303-ZC3 | 1 |
| 12 | 51908010076 | lock washer | 1 |
| 13 | 51906850023 | hexagon nut M17X1-5 | 1 |
