MAN Raw Water Pump 50065007017

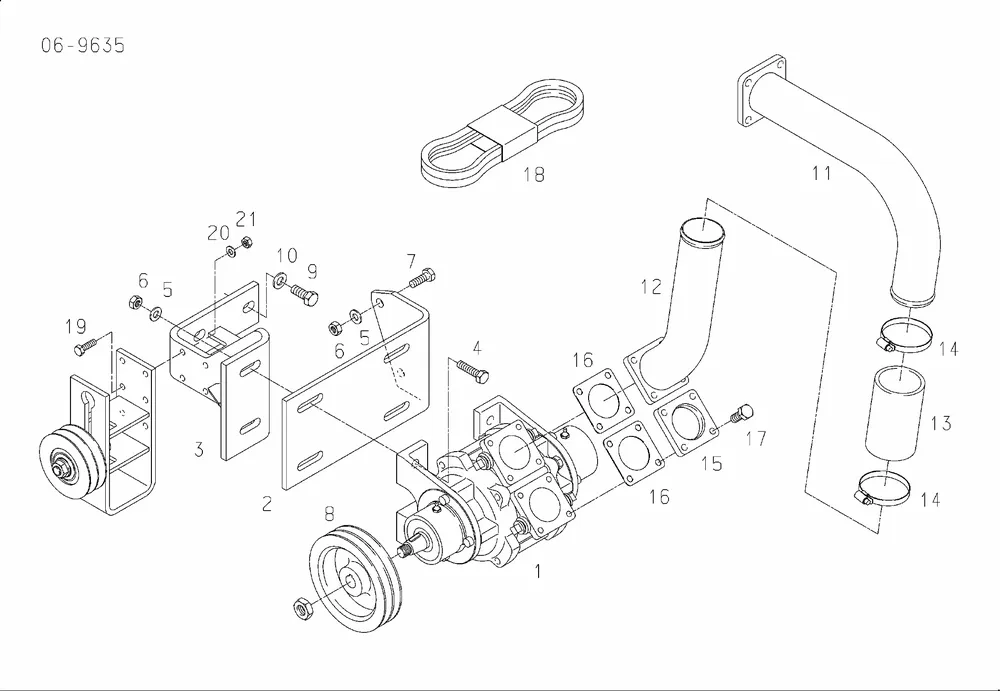

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 50.06500-7017, 50.06500.7017
- Engine model
- MAN D2840 LE100, MAN D2840 LE200and 4 more
- Weight
- 20.8 kg
- Dimensions
- 250 × 220 × 370 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN raw water pump for the D2840 and D2842. When a flexible impeller fails, the vanes that break off do not stay in the pump: they travel downstream with the flow and lodge in the first restriction they meet, which is normally the heat exchanger's tube stack. An engine that overheats shortly after an impeller has been replaced is usually telling you the old vanes were never recovered. Count the vanes coming out against the number the new impeller has, and where any are missing, open the heat exchanger end cover and retrieve them rather than hoping. That check adds a few minutes to a routine service and prevents a puzzling overheat weeks later. Keeping the old impeller in the toolbox until the next service makes that count possible a second time, when memory has faded.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 50065007017 | raw water pump | 1 |
| 2 | 51065400020 | bracket | 1 |
| 3 | 50065405014 | bracket | 1 |
| 4 | 06012890160 | hexagon screw M12X45-8.8-MAN183-A3C | 4 |
| 5 | 06150150413 | washer 12X24X2,5-300HV-MAN183-B1 | 6 |
| 6 | 06110642116 | hexagon nut M12-8-MAN183-B1 | 6 |
| 7 | 06012835317 | hexagon screw M12X30-8.8-MAN183-B1 | 2 |
| 8 | 50065030255 | V-belt pulley 2A146-25/5-1:5 2-groove | 1 |
| 9 | 06012890129 | hexagon screw M14X30-8.8-MAN183-A3C | 2 |
| 10 | 06150150415 | washer 14X28X2,5-300HV-MAN183-B1 | 2 |
| 11 | 51063025765 | cooling water pipe | 1 |
| 12 | 51063025764 | cooling water pipe | 1 |
| 13 | 51963300395 | hose 60X5,5X105-MVQ flameproof | 1 |
| 14 | 06672235070 | hose clamp C1-1-70X20-W2-2 | 2 |
| 16 | 51069010130 | Coolant pump seal | 2 |
| 17 | 06013251415 | hexagon screw M10X25-A4-70 sea-water resistant | 8 |
| 18 | 06580732472 | narrow v-belt set C-13X1650X2 | 1 |
| 18 | 06580732482 | narrow v-belt set C-13X1675X2 | 1 |
| 19 | 06012835117 | hexagon screw M8X30-8.8-MAN183-B1 | 4 |
| 20 | 06150150411 | washer 8X16X1,6-300HV-MAN183-B1 | 4 |
| 21 | 06110642114 | hexagon nut M8-8-MAN183-B1 | 4 |
