Turbocharger charge-air pipe

19 part numbers in this assembly of the MAN D2866 LE401.

← Back to D2866 LE401Request a quote for this assembly
O-ring 74X5-FPM1-70-GN item number 11 - 13 deleted *06569362733MANMAN O-ring 74X5-FPM1-70-GN item number 11 - 13 deleted * 06569362733Available for order7 days€25.79
O-ring 63X2,5-FPM1-70-GN06569362479MANMAN O-ring 63X2,5-FPM1-70-GN 06569362479Available for order7 days€13.59
Profiled clamp 76X20-1.430151974450122MANMAN Profiled clamp 76X20-1.4301 51974450122In stock7 days€21.71

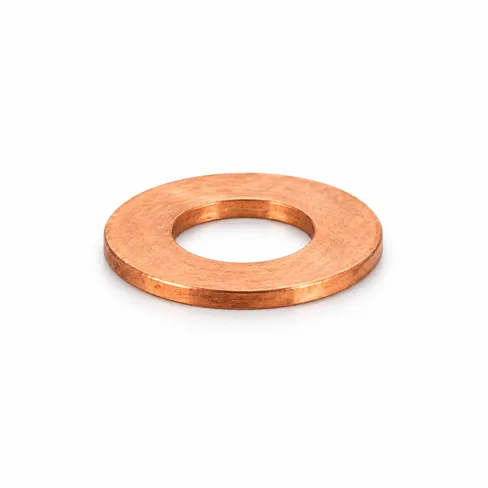

Seal 9,5X20X1,5-CU51987010076MANMAN Seal 9,5X20X1,5-CU 51987010076Available for order7 days€9.80

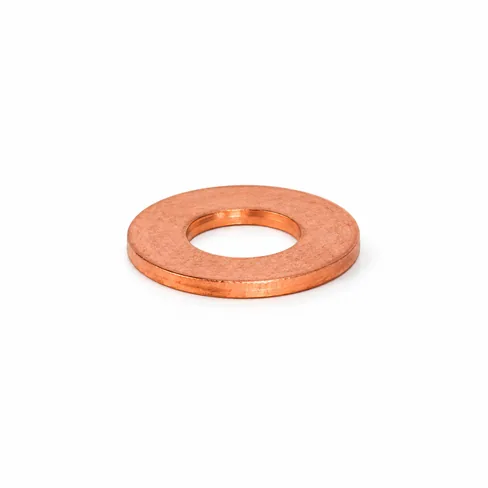

Seal 9,5X20X2-CU51987010086MANMAN Seal 9,5X20X2-CU 51987010086Available for order7 days€3.70

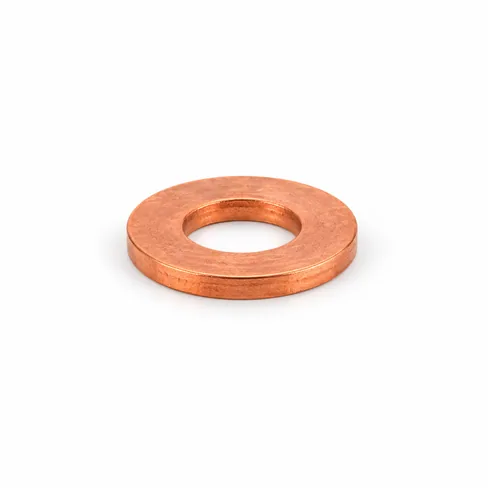

Seal 9,5X20X2,5-CU51987010087MANMAN Seal 9,5X20X2,5-CU 51987010087Available for order7 days€10.01

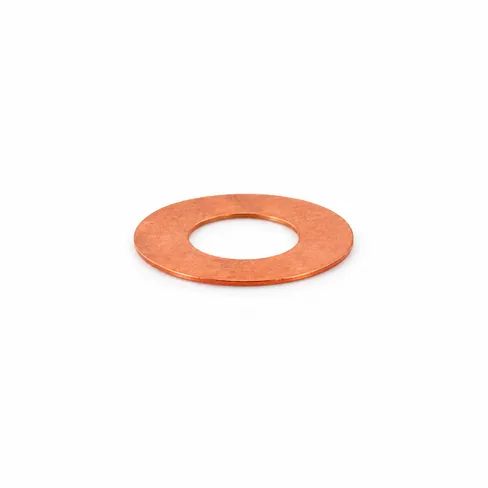

Seal 9,5X20X0,5-CU51987010075MANMAN Seal 9,5X20X0,5-CU 51987010075Available for order7 days€3.70
Seal A14X20-CU06561900706MANMAN Seal A14X20-CU 06561900706Available for order7 days€2.80
Washer 9X19X451907100636MANMAN Washer 9X19X4 51907100636Available for order7 days€0.64
Intercooler elbow51094120361MANAvailable for order7 days€815.41
Charge-air pipe51094110458MANAvailable for order€951.32
Extension tube51981820031MANAvailable for order7 days€96.23
Intercooler elbow51094110294MANAvailable for order7 days€161.26
Hexagon screw M8X30-8.8-MAN183-B106012835117MANAvailable for order7 days€2.97
Washer 8X16X1,6-300HV-MAN183-B106150150411MANAvailable for order7 days€1.41
Angle51094400030MANAvailable for order7 days€198.61
Hexagon screw M8X25-8.8-MAN183-B106012835115MANAvailable for order7 days€2.87
Gasket asbestos-free51099050017MANAvailability on requestPrice on request
Drain plug M14X1,5-ST-ZNPHR3F or *06080620203MANAvailability on requestPrice on request

Quantities are per engine unless the drawing says otherwise.
