MAN D2876 LE301 parts catalogue

Diesel Engine

1,690 parts

Categories of the D2876 LE301

Engine, cooling systems

View all 975 part numbers →
Circlip 62X2,00-ZNPHR5F06290200136MANIn stock1 day€5.14
Sealant04903009011MANIn stock1 day€246.59
Circlip 14X1,00-ZNPHR5F06290200105MANIn stock1 day€0.33
Spring clip A-35X1206674201235MANIn stock1 day€4.44

Fuel system, exhaust system

View all 334 part numbers →
Ht grease TB100G tube09160120114MANIn stock1 day€27.60
Pressure spring51976010259MANIn stock1 day€6.70
Hex collar bolt M10X3506022020205MANMAN Hex collar bolt M10X35 06022020205Available for order7 days€3.40
Seal A6,5X9,5-CU06561800707MANMAN Seal A6,5X9,5-CU 06561800707Available for order7 days€1.47

Elec. systems, display equip.

View all 294 part numbers →
Speed sender51271200007MANIn stock1 day€103.66
Washer 6X12X1,6-200HV-MAN183-B106150130409MANMAN Washer 6X12X1,6-200HV-MAN183-B1 06150130409Available for order7 days€0.26
Hexagon nut M12-8-MAN183-B106110642116MANMAN Hexagon nut M12-8-MAN183-B1 06110642116Available for order7 days€1.63
Washer 10X20X2-200HV-MAN183-B106150130412MANMAN Washer 10X20X2-200HV-MAN183-B1 06150130412Available for order7 days€3.01

General components

View all 51 part numbers →
O-ring 50X5N-NBR3-7006569302223MANMAN O-ring 50X5N-NBR3-70 06569302223Available for order7 days€10.63
O-ring 60X4B-NBR3-6006563412122MANMAN O-ring 60X4B-NBR3-60 06563412122Available for order7 days€5.39
Gasket 40X68X1,0-AFOE4-M3219-G106562543706MANMAN Gasket 40X68X1,0-AFOE4-M3219-G1 06562543706Available for order7 days€8.39

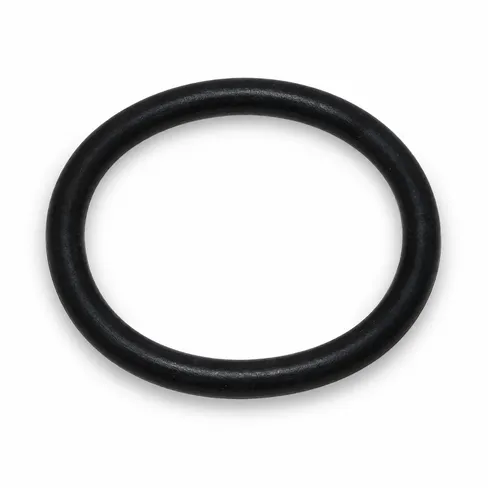

O-ring 34X4N-FPM2-7006569371686MANMAN O-ring 34X4N-FPM2-70 06569371686Available for order7 days€10.63

Driveline

View all 29 part numbers →
Cylinder screw M10X25-10.9-MAN183-PHR with hexagon socket06021910509MANAvailable for order7 days€4.39
Stud06061390088MANAvailable for order7 days€3.83
Seal A22X27-CU06561900718MANMAN Seal A22X27-CU 06561900718Available for order7 days€4.13
Seal A27X32-CU06561900729MANMAN Seal A27X32-CU 06561900729Available for order7 days€7.49

Brake system

View all 3 part numbers →
Bush51917010204MANAvailable for order7 days€7.67
Roller bearing51934200015MANAvailable for order7 days€247.16
Hex shoulder stud06010190315MANAvailable for order7 days€3.57

Air intake

View all 2 part numbers →
Drain plug G3/4"A-ST-MAN183-B106080620750MANAvailable for order7 days€4.17
Profiled clamp 136X25-1.430151974450120MANAvailable for order7 days€55.66

General parts

View all 1 part numbers →
O-ring51965010337MANAvailable for order7 days€3.76

Lubrication & oil system

View all 1 part numbers →
Drive gear for oil pump51052010105MANAvailable for order7 days€107.69

Popular parts for the D2876 LE301

About the MAN D2876 LE301

In MAN's documentation the D2876 LE301 shares a repair manual with the D2866 LE401 to LE405 and the D2876 LE403, and its marine parts follow suit: tube bundle 51.06109-0041 with heat exchanger assembly 51.06100-7022, raw water pump numbers 51.06500-6607 and -7026, impellers and hydraulic PTO pumps, several of them with the same numbers as on the D2866 LE402 list.

Most of its numbers recur in the D2876 LE401 to LE407 list. The gap is electronic: EDC control units, diagnostic units, relays, power cables and harnesses from that list do not appear here. Injection pump 51.11103-7414 and its neighbours -7416 and -7417 match the LE201 genset list, while oil pumps, oil dipsticks and some fuel lines are LE301 numbers.
