MAN Turbocharger 51091017323

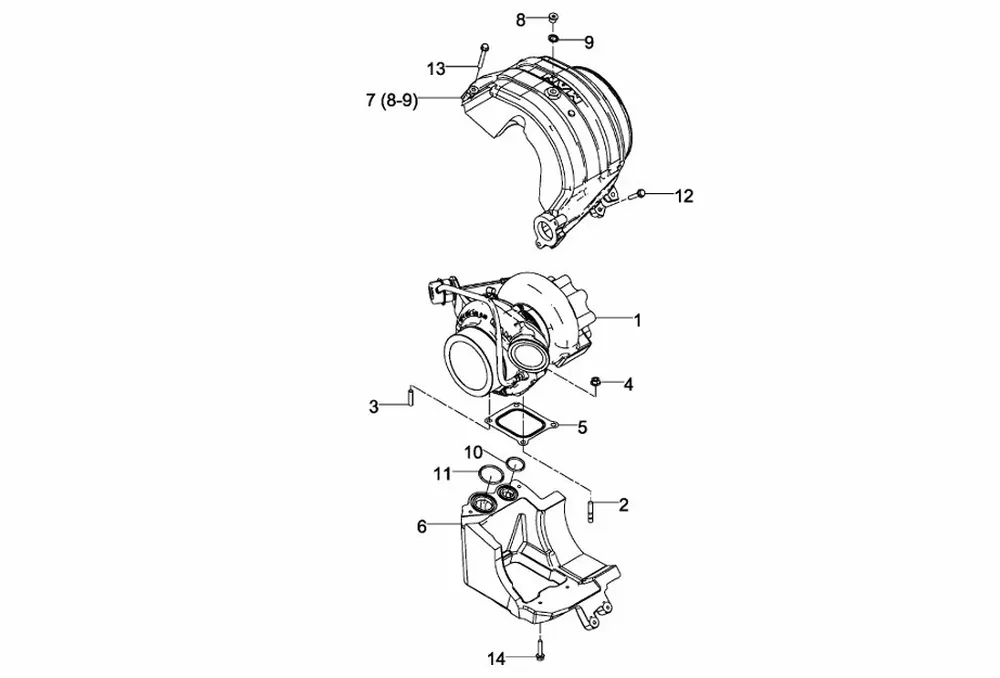

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.09101-7323, 51.09101.7323
- Engine model
- MAN D2862 LE422, MAN D2862 LE463
- Weight
- 25.8 kg
- Dimensions
- 318 × 275 × 395 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN turbocharger for the D2862 LE3 and LE4 builds. Falling boost is a symptom with more causes outside the turbocharger than in it, which matters because the turbo is the most expensive thing in the chain to replace speculatively. A leaking intercooler or a split charge-air hose produces exactly the profile operators associate with a tired turbo — less power, more smoke, a whistle or hiss under load — while the unit itself is sound. So does a wastegate that has stuck open, which is a separate and much cheaper component. Pressure-test the charge-air system before ordering, and check the wastegate linkage moves freely through its travel. Where the turbocharger genuinely is the fault, the shaft will usually tell you by feel before the gauges do.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51091017323 | turbocharger right | 1 |
| 2 | 51902010255 | stud M10X40-SD-HOCHWARMFEST | 2 |
| 3 | 51902010251 | stud M10X25-SD-HOCHWARMFEST | 2 |
| 4 | 06112290023 | hex collar nut M10-GA-SW15-C3J | 4 |
| 5 | 51089010347 | gasket | 1 |
| 6 | 51091416021 | shell lower turbocharger | 1 |
| 7 | 51091416022 | shell upper turbocharger | 1 |
| 8 | 06080490045 | drain plug M14X1,5-ST-MAN183-B1 | 1 |
| 9 | 06566310235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 10 | 06569371686 | O-ring 34X4N-FPM2-70 | 1 |
| 11 | 06569372168 | O-ring 48X4N-FPM2-70 | 1 |
| 12 | 06032168309 | hex flange bolt M8X45-10.9-MAN183-B1 | 2 |
| 13 | 06032168312 | hex flange bolt M8X60-10.9-MAN183-B1 | 2 |
| 14 | 06032158308 | hex flange bolt M8X40-8.8-MAN183-B1 | 4 |
