MAN Turbocharger 51091017324

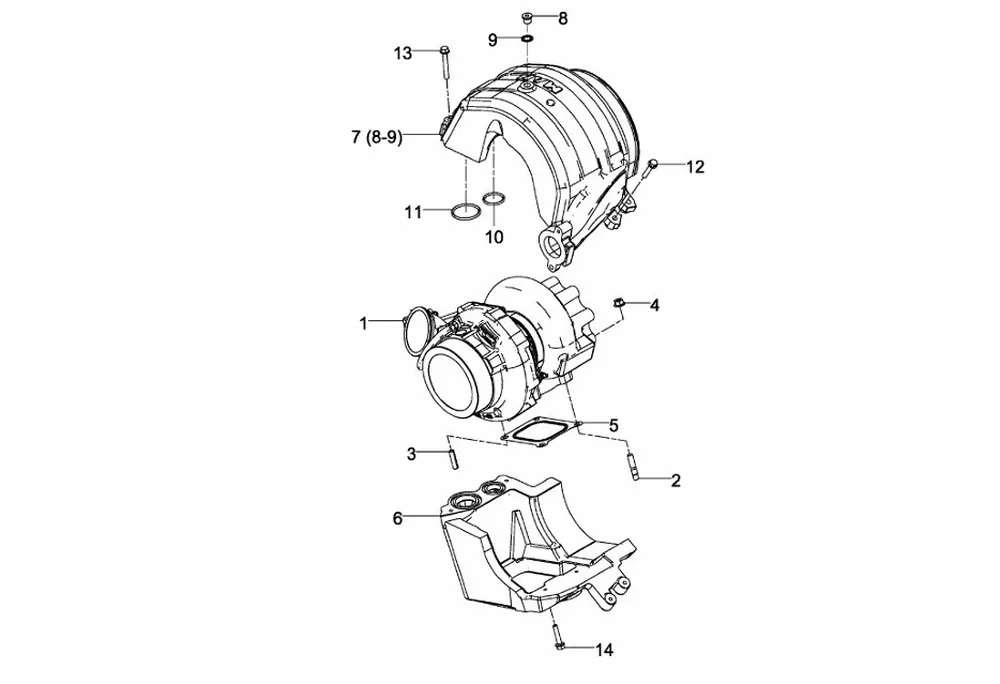

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.09101-7324, 51.09101.7324
- Engine model
- MAN D2862 LE422, MAN D2862 LE463
- Weight
- 25.5 kg
- Dimensions
- 317 × 256 × 342 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN turbocharger for the D2862 LE3 and LE4 builds. The rotating assembly inside is balanced as a unit at manufacture, to tolerances that matter because of the speeds involved — an imbalance that would be irrelevant on a crankshaft is destructive here. That has a practical consequence for anyone considering a repair, short of replacement: swapping a compressor wheel or a shaft in isolation leaves an unbalanced assembly, and an unbalanced assembly destroys its own bearings quickly. Turbocharger repair is therefore a bench operation with balancing equipment, not a component swap, and is the reason exchange units exist as a category. Where the housing is undamaged and only the core has failed, a remanufactured unit is usually the economic answer rather than a new one.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51091017324 | turbocharger left | 1 |
| 2 | 51902010255 | stud M10X40-SD-HOCHWARMFEST | 2 |
| 3 | 51902010251 | stud M10X25-SD-HOCHWARMFEST | 2 |
| 4 | 06112290023 | hex collar nut M10-GA-SW15-C3J | 4 |
| 5 | 51089010347 | gasket | 1 |
| 6 | 51091416021 | shell lower turbocharger | 1 |
| 7 | 51091416022 | shell upper turbocharger | 1 |
| 8 | 06080490045 | drain plug M14X1,5-ST-MAN183-B1 | 1 |
| 9 | 06566310235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 1 |
| 10 | 06569371686 | O-ring 34X4N-FPM2-70 | 1 |
| 11 | 06569372168 | O-ring 48X4N-FPM2-70 | 1 |
| 12 | 06032168309 | hex flange bolt M8X45-10.9-MAN183-B1 | 2 |
| 13 | 06032168312 | hex flange bolt M8X60-10.9-MAN183-B1 | 2 |
| 14 | 06032158308 | hex flange bolt M8X40-8.8-MAN183-B1 | 4 |
