MAN Camshaft 51044015088

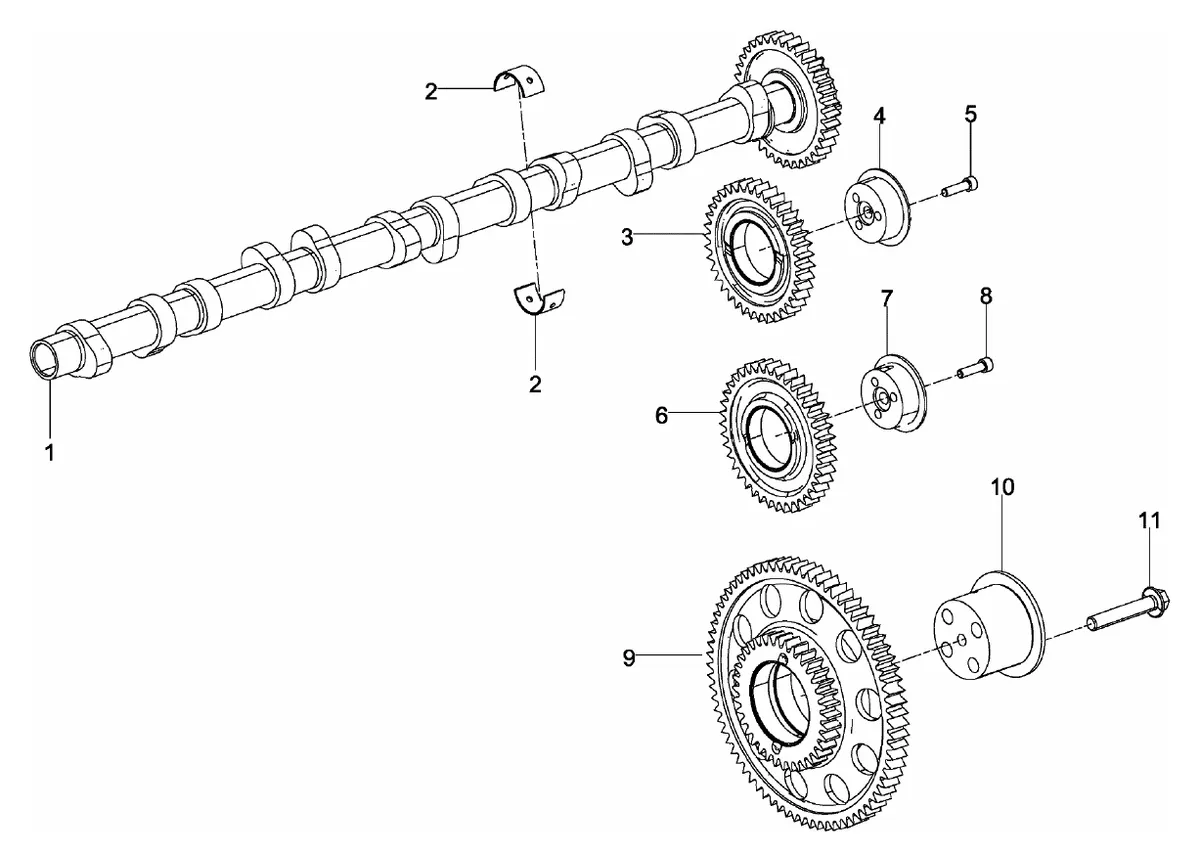

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.04401-5088, 51.04401.5088
- Replaces
- 51044015130, 51044015165, 51044006050, 51044016398
- Engine model
- MAN D2066 LE1.., MAN D2066 LE6..and 8 more
- Weight
- 8.23 kg
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN camshaft for the D2676 LE1, LE5 and LE6 build ranges, the 12.4-litre in-line six. What kills camshafts on marine diesels is almost never the camshaft: it is the oil supply reaching it. Lobes and followers are lubricated by oil arriving through drillings in the block and the shaft itself, and those passages are narrow enough to be affected by sludge from extended drain intervals, by debris after an earlier failure elsewhere, or simply by oil that has thinned with fuel dilution. Pitting and spalling on a lobe face are the visible result of a lubrication problem rather than of a material one. Before fitting a replacement, confirm the drillings are clear and establish what the oil has been doing, because the new shaft depends on exactly the same supply.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51044015088 | camshaft | 1 |
| 1 | 51044015165 | camshaft WW -5088/-5130 | 1 |
| 2 | 51044100177 | camshaft bush | 14 |
| 3 | 51045055159 | intermediate gear | 1 |
| 3 | 51045055164 | intermediate gear | 1 |
| 3 | 51045055204 | intermediate gear | 1 |
| 4 | 51045060077 | gear stud small version | 1 |
| 4 | 51045060114 | gear stud small | 1 |
| 5 | 06021910410 | cylinder screw M8X30-10.9-MAN183-PHR with hexagon socket | 3 |
| 6 | 51045055150 | intermediate gear | 1 |
| 6 | 51045055158 | intermediate gear | 1 |
| 6 | 51045055163 | intermediate gear | 1 |
| 6 | 51045055203 | intermediate gear | 1 |
| 7 | 51045060077 | gear stud small version | 1 |
| 7 | 51045060114 | gear stud small | 1 |
| 8 | 06021910410 | cylinder screw M8X30-10.9-MAN183-PHR with hexagon socket | 3 |
| 9 | 51045055143 | intermediate gear | 1 |
| 9 | 51045055201 | intermediate gear | 1 |
| 10 | 51045060078 | gear stud large version | 1 |
| 10 | 51045060107 | gear stud large | 1 |
| 11 | 06032168615 | hex flange bolt M14X80-10.9-MAN183-B1 | 4 |
Alternatives to this part
| Type · Origin | Price | Saving | Lead time | Availability | Add to cart |
|---|---|---|---|---|---|
| AftermarketGermany8 days | €352.80 | −77% | 8 days | — | |
| AftermarketChina14 days | €404.60 | −74% | 14 days | — | |
| Aftermarket1 dayIn stock | €791.34 | −49% | 1 day | In stock |
Per piece, excluding VAT and freight. Saving is against the price of this part. We confirm the exact number and fit before you order.
