MAN Piston 51025006106

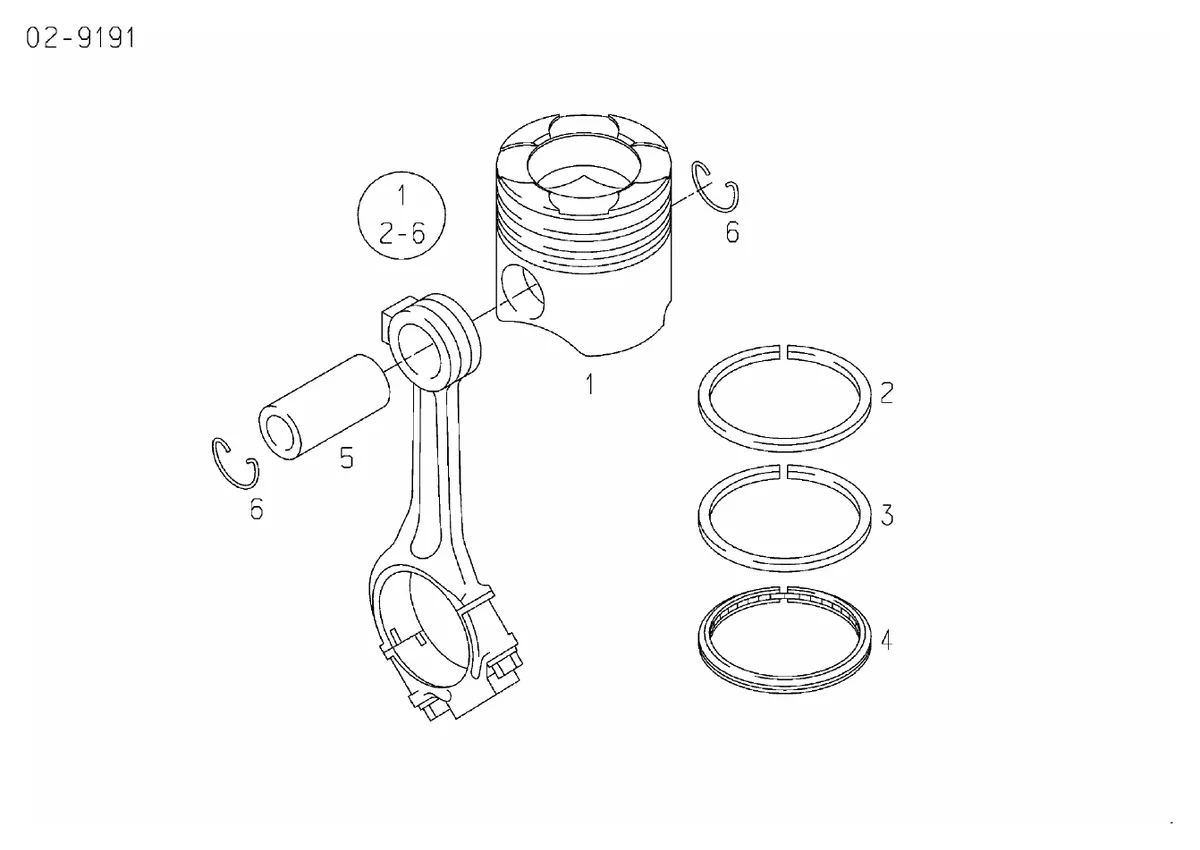

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.02500-6106, 51.02500.6106
- Description
- Stationary engine piston 128.00 mm
- Engine model
- MAN D2840 LE423
- Weight
- 3.82 kg
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN piston for the D2840, MAN's V10. Damage to a piston crown is a different story from wear and needs reading differently. Pitting, melting or a hole in the crown is detonation damage — pressure spikes from poor combustion, incorrect injection timing or a faulty injector spraying onto the crown instead of atomising — and it happens over hours or minutes, not years. Finding it means the cause is still present: fitting a new piston into an engine with the injector or timing fault unresolved simply repeats the process. Have the injector for that cylinder bench tested before the engine is reassembled, and check injection timing instead of assuming it. Detonation damage on more than one cylinder points at timing or fuel quality, not at a single faulty injector, and that distinction changes the scope of the repair considerably.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51025006106 | stationary engine piston 128,00 MM normal | 10 |
| 1 | 51025006107 | stationary engine piston assembly undersize 0,20 mm 128,00 MM | 10 |
| 1 | 51025006108 | stationary engine piston assembly undersize 0,40 mm 128,00 MM | 10 |
| 2 | 51025030811 | keystone ring | 10 |
| 3 | 51025030784 | taper face compression ring | 10 |
| 4 | 51025030806 | bevelled oil scraper ring | 10 |
| 5 | 51025020107 | piston pin | 10 |
| 6 | 51908100035 | snap ring 50,5X2-FST | 20 |
