MAN Coolant expansion tank 51061026115

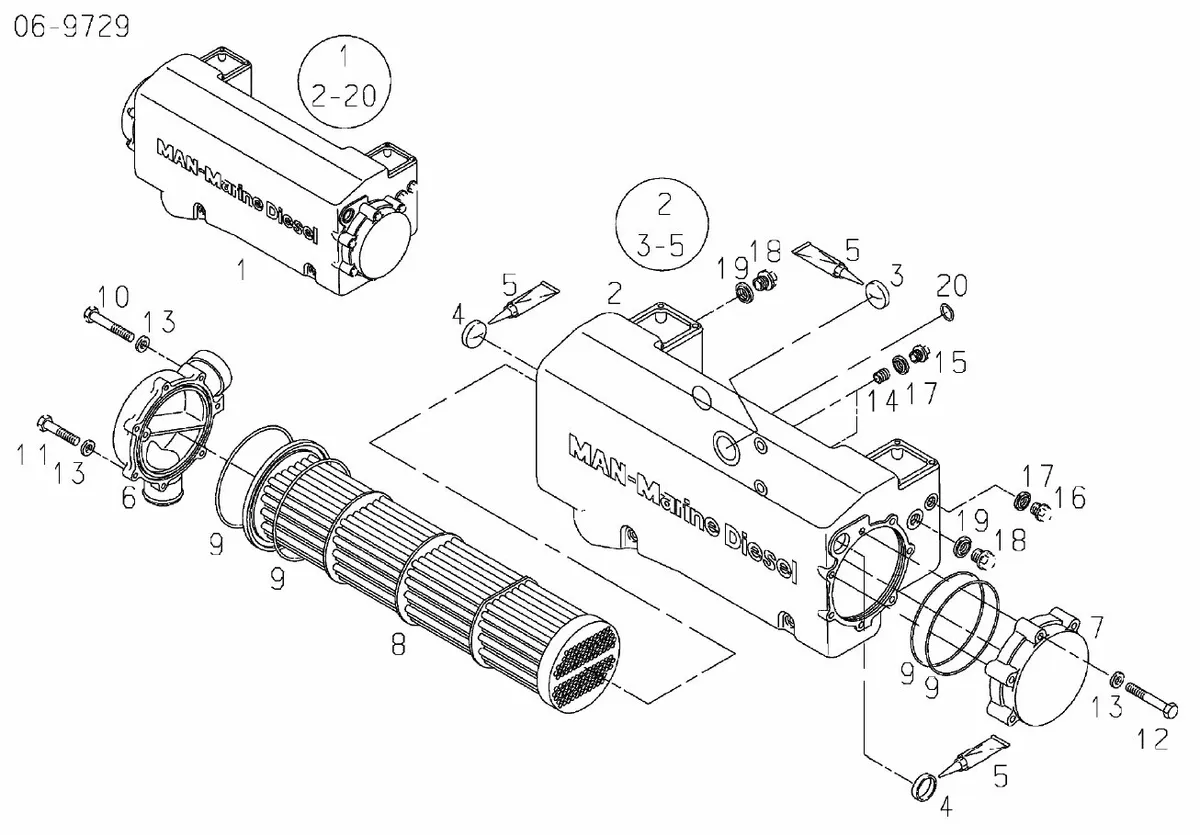

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06102-6115, 51.06102.6115
- Replaces
- 51061026114
- Engine model
- MAN D2840 LE301, MAN D2840 LE302and 48 more
- Weight
- 29.75 kg
- Dimensions
- 380 × 320 × 775 mm
- Country of origin
- France
- Condition
- New
Numbers this part has been supplied under
- 51061026111
- 51061026114
- 51061007014
- 51061026115now
- 51061026111
- 51061026114
- 51061007014
- 51061007017
- 51061090035
- 51061007013
- 51061007019
- 51061007015
- 51061007020
- 51061007018
- 51061026109
- 51061026106
- 51061026105
- 51061020033
- 51061020031
About this part
Genuine MAN coolant expansion tank. On a marine installation the tank is usually mounted above the highest point of the engine's coolant circuit, because that is where air collects and where it can be vented. A tank relocated during a repower or a refit will trap air somewhere in the system, and the symptom — intermittent overheating that clears after bleeding — is easily blamed on the thermostat or the pump.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51061007013 | heat exchanger | 1 |
| 2 | 51061026115 | coolant expansion tank | 1 |
| 3 | 51916060053 | cover A50,2/10,5-X5CRNI1810N | 4 |
| 4 | 51916060090 | cover A40,15/14,5-X5CRNI1810N | 2 |
| 5 | 04101609164 | adhesive LOCTITE648-FL50ML bottle | NB |
| 6 | 51061120015 | cover | 1 |
| 7 | 51061120008 | reversing chamber | 1 |
| 8 | 51061090043 | tube bundle | 1 |
| 9 | 06569304388 | O-ring 185X5N-NBR3-70 | 4 |
| 10 | 06010149120 | hex shoulder stud M8X75-10.9-MAN183-PHR | 3 |
| 11 | 06010149116 | hex shoulder stud M8X55-10.9-MAN183-PHR | 4 |
| 12 | 06010137121 | hex shoulder stud M8X80-8.8-MAN183-B1 | 7 |
| 13 | 06150150411 | washer 8X16X1,6-300HV-MAN183-B1 | 14 |
| 14 | 06061660708 | threaded pin M12X20-45H | 2 |
| 15 | 06080620203 | drain plug M14X1,5-ST-ZNPHR3F | 2 |
| 16 | 51903100241 | drain plug M14X1,5X9-CUZN39PB3-SW19 | 1 |
| 17 | 06566310235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 3 |
| 18 | 06080990016 | drain plug AM18X1,5-ST-MAN183-B1 | 2 |
| 19 | 06566310237 | seal 18,3X26X1,5-ST/FKM1-80 with elastomer lip | 2 |
| 20 | 06569362733 | O-ring 74X5-FPM1-70-GN | 1 |
