MAN Tube Bundle 51061090043

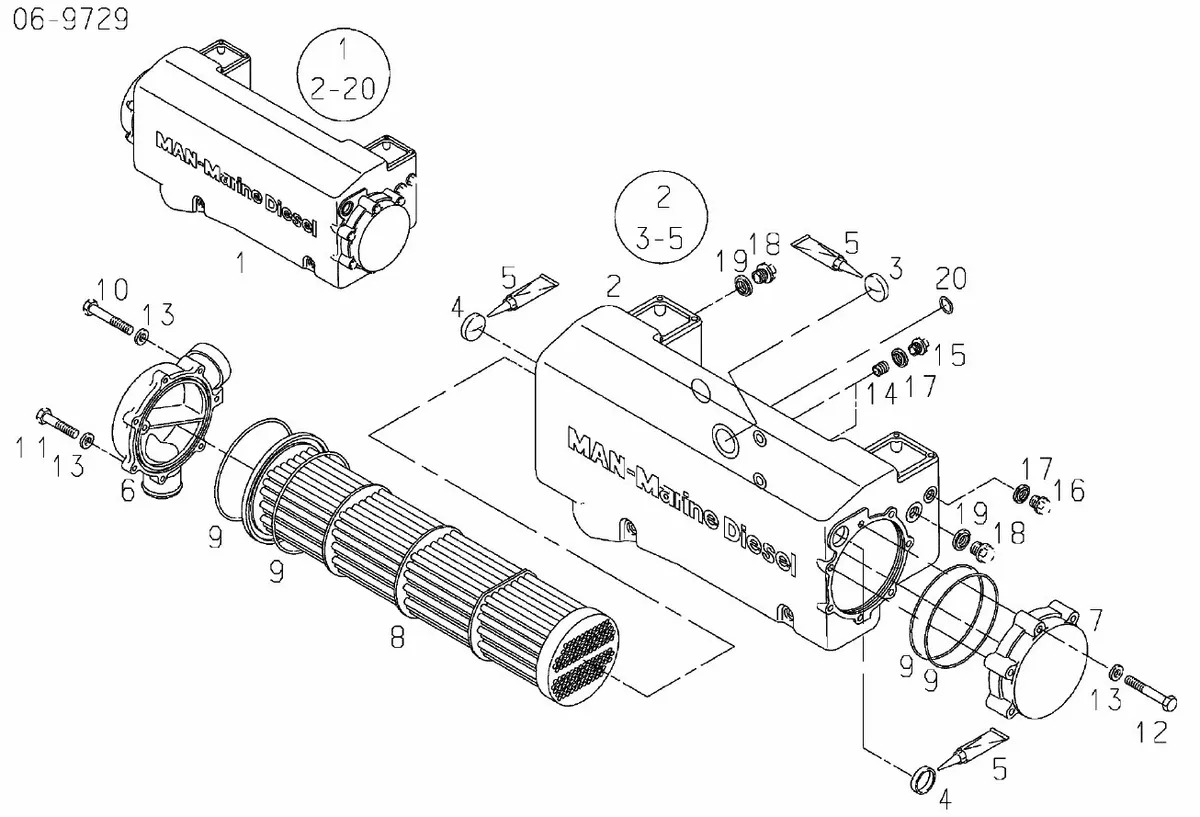

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06109-0043, 51.06109.0043
- Replaces
- 51061090027
- Engine model
- MAN D2840 LE301, MAN D2840 LE302and 42 more
- Weight
- 20.7 kg
- Dimensions
- 208 × 208 × 815 mm
- Country of origin
- France
- Condition
- New
Numbers this part has been supplied under
- 51061090027
- 51061007014
- 51061007017
- 51061090043now
- 51061090027
- 51061007014
- 51061007017
- 51061007013
- 51061090024
- 51061090019
- 51061090015
- 51061090012
- 51061090011
About this part
Genuine MAN heat exchanger tube bundle for the D2848, D2840 and D2842. Cleaning a bundle, before any thought of replacing it, is usually the first option, and the method matters: mechanical rodding removes silt and growth, while chemical descaling addresses hard scale, and using the wrong one achieves little. What must be avoided is anything abrasive inside the tubes, since the tube wall is thin by design and the corrosion resistance depends on its surface. Where tubes have been perforated and not merely fouled — which shows up as coolant loss with no external leak, or oil and coolant appearing in the raw water discharge — the bundle is replaced; repair is not available. Where a bundle has been cleaned repeatedly over many years, its wall thickness is worth measuring, not assuming, since cleaning removes material as well as deposits.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51061007013 | heat exchanger | 1 |
| 2 | 51061026115 | coolant expansion tank | 1 |
| 3 | 51916060053 | cover A50,2/10,5-X5CRNI1810N | 4 |
| 4 | 51916060090 | cover A40,15/14,5-X5CRNI1810N | 2 |
| 5 | 04101609164 | adhesive LOCTITE648-FL50ML bottle | NB |
| 6 | 51061120015 | cover | 1 |
| 7 | 51061120008 | reversing chamber | 1 |
| 8 | 51061090043 | tube bundle | 1 |
| 9 | 06569304388 | O-ring 185X5N-NBR3-70 | 4 |
| 10 | 06010149120 | hex shoulder stud M8X75-10.9-MAN183-PHR | 3 |
| 11 | 06010149116 | hex shoulder stud M8X55-10.9-MAN183-PHR | 4 |
| 12 | 06010137121 | hex shoulder stud M8X80-8.8-MAN183-B1 | 7 |
| 13 | 06150150411 | washer 8X16X1,6-300HV-MAN183-B1 | 14 |
| 14 | 06061660708 | threaded pin M12X20-45H | 2 |
| 15 | 06080620203 | drain plug M14X1,5-ST-ZNPHR3F | 2 |
| 16 | 51903100241 | drain plug M14X1,5X9-CUZN39PB3-SW19 | 1 |
| 17 | 06566310235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 3 |
| 18 | 06080990016 | drain plug AM18X1,5-ST-MAN183-B1 | 2 |
| 19 | 06566310237 | seal 18,3X26X1,5-ST/FKM1-80 with elastomer lip | 2 |
| 20 | 06569362733 | O-ring 74X5-FPM1-70-GN | 1 |
