MAN Raw Water Pump 51065007035

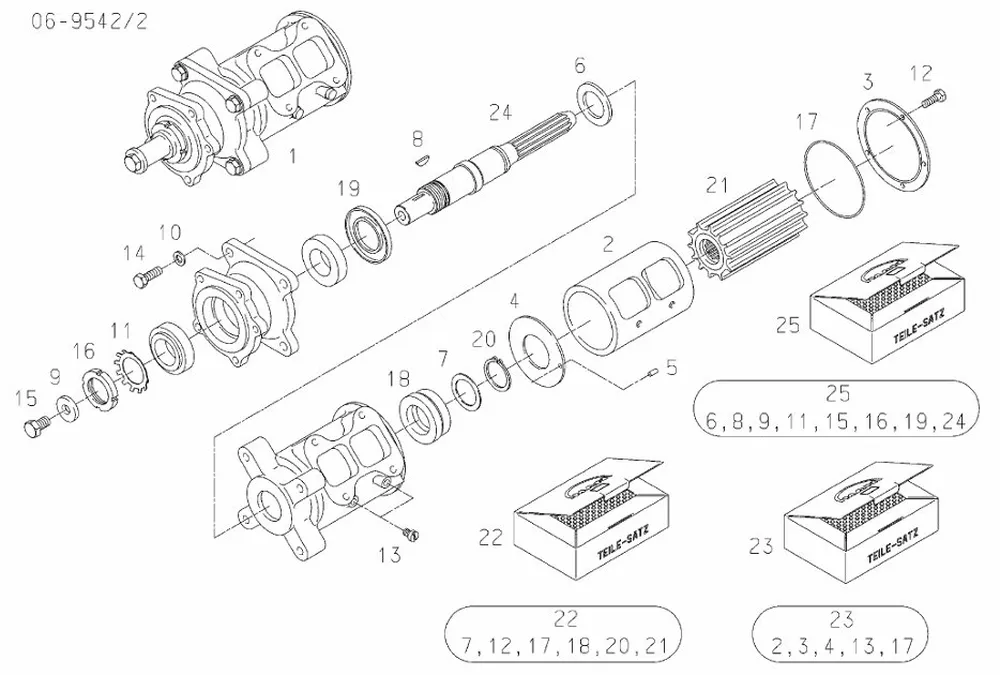

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06500-7035, 51.06500.7035
- Replaces
- 51065007025
- Engine model
- MAN D2840 LE301, MAN D2840 LE302and 41 more
- Weight
- 10.8 kg
- Dimensions
- 155 × 125 × 332 mm
- Country of origin
- Sweden
- Condition
- New
About this part
Genuine MAN raw water pump for the D2840 and D2842. Galvanic corrosion is a factor here that has no equivalent on a land engine: a bronze pump body plumbed into a circuit that includes other metals and filled with seawater is part of an electrochemical system, and the sacrificial anodes in the raw water circuit are what protect it. Anodes that have been allowed to waste away entirely stop protecting and start letting the next-least-noble metal corrode instead, which may be the pump. Check and renew anodes on schedule, and where a pump body shows pink-tinged dezincification or pitting, look at the anode history before assuming the pump was simply old. Anodes are also among the cheapest parts on the boat and among the most consistently neglected.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51065007035 | raw water pump | 1 |
| 2 | 51065010266 | excentric | 1 |
| 3 | 51065120037 | cover raw water pump | 1 |
| 4 | 50065200062 | wear plate | 1 |
| 4 | 51065200115 | wear plate | 1 |
| 5 | 51913010103 | pin | 1 |
| 6 | 51960030013 | sealing washer | 1 |
| 7 | 51907100429 | washer | 1 |
| 8 | 50976510032 | key | 1 |
| 9 | 51907100430 | washer | 1 |
| 10 | 06167316109 | spring washer A12-A3C | 4 |
| 10 | 06167390013 | spring washer A12-MAN183-B1 | 4 |
| 11 | 51908010082 | lock washer | 1 |
| 12 | 06013251110 | hexagon screw M6X12-A4-70 | 5 |
| 13 | 51900300078 | cylinder screw M8X25-CU82AL10NI4FE4 | 2 |
| 14 | 06012835215 | hexagon screw M10X25-8.8-MAN183-B1 | 4 |
| 15 | 06012835313 | hexagon screw M12X20-8.8-MAN183-B1 | 1 |
| 16 | 51906200013 | grooved nut M35 X 1,5 | 1 |
| 17 | 06569303076 | O-ring 90X2,5N-NBR3-70 | 1 |
| 18 | 51065200088 | Axial face seal | 1 |
| 19 | 51065200083 | radial shaft seal 40X72X7-NBR | 1 |
| 20 | 51908200001 | circlip | 1 |
| 21 | 51065060106 | Impeller | 1 |
| 22 | 51065996071 | Water pump repair kit | 1 |
| 23 | 51065996072 | Water pump repair kit for raw water pump | 1 |
| 24 | 51065050077 | water pump shaft | 1 |
| 25 | 51065996073 | parts kit raw water pump | 1 |
