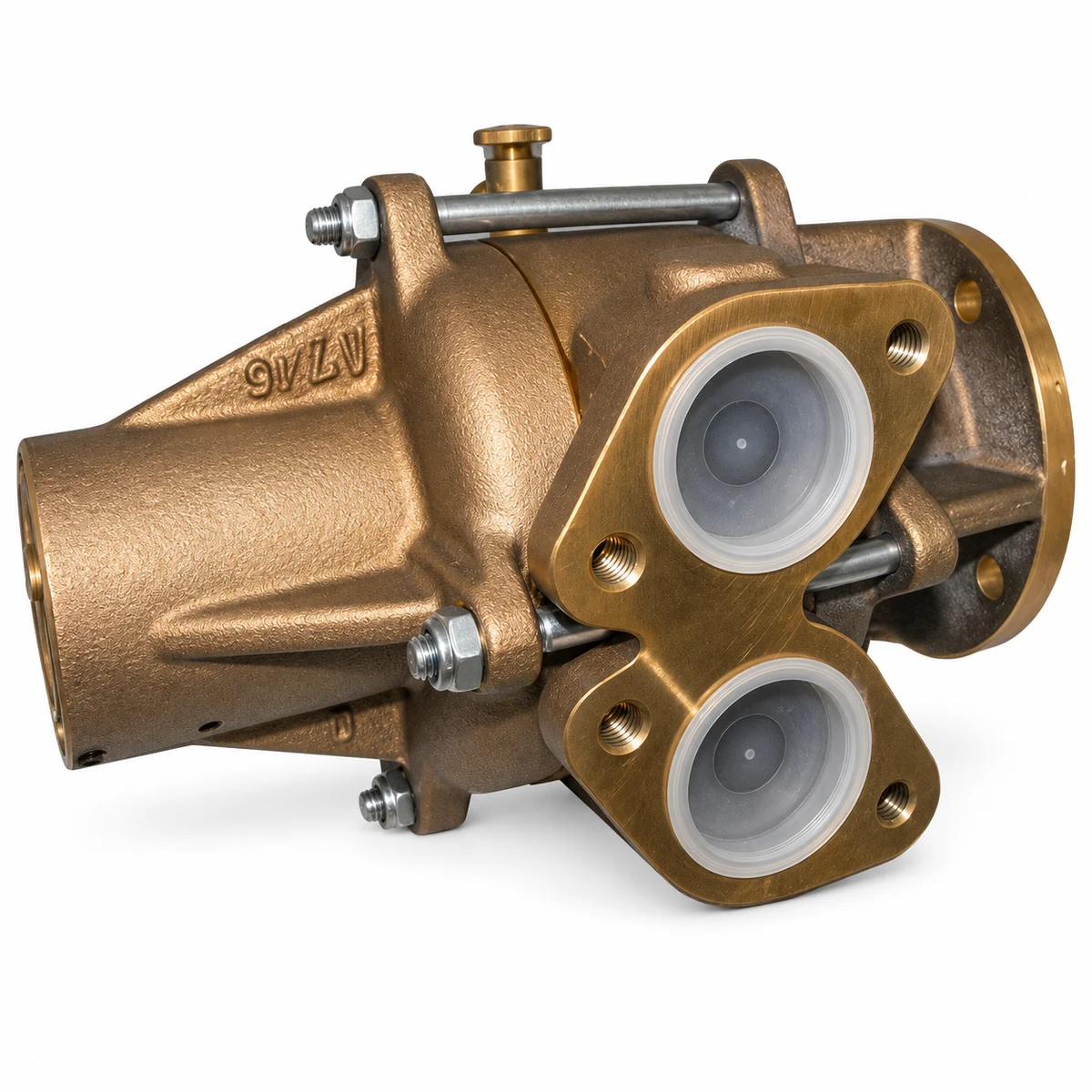

MAN Raw Water Pump 51065007039
- Manufacturer
- MAN
- Also written as
- 51.06500-7039, 51.06500.7039
- Replaces
- 51065006351
- Engine model
- MAN D2866 E, MAN D2866 LEand 8 more
- Weight
- 11.1 kg
- Dimensions
- 155 × 152 × 300 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN raw water pump for the D2866. The shaft seal in a pump of this type is a wear item with a finite life, and it works in a demanding position — sealing against water on one side and holding lubricant on the other, on a shaft that turns whenever the engine runs. Seals fail gradually rather than suddenly, which is why the weep hole exists to make that gradual failure visible before it reaches the bearing. Where a pump is being overhauled, the seal is renewed as a matter of course alongside the impeller and the bearing, since the labour of reaching it dwarfs its cost and a used seal reinstalled rarely lasts as long as the rest of the rebuild.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51065006351 | raw water pump | 1 |
| 1 | 51065007039 | raw water pump | 1 |
| - | 51981250003 | drain valve raw water pump | 1 |
| 2 | 51065050058 | drive shaft | 1 |
| 2 | 51065050073 | drive shaft raw water pump | 1 |
| 3 | 51965010407 | radial shaft seal 20X47X7-NB | 1 |
| 4 | 06290200128 | circlip 47X1,75-ZNPHR5F | 1 |
| 5 | 51934100015 | ball bearing 6204-2RSRZ27YC3 | 1 |
| 6 | 51065200056 | Axial face seal | 1 |
| 7 | 51908010075 | lock washer | 2 |
| 8 | 51065060082 | Impeller | 2 |
| 9 | 51069010093 | Coolant pump seal | 2 |
| 9 | 51069010094 | Coolant pump seal | 2 |
| 10 | 51065200055 | Axial face seal | 1 |
| 11 | 06314600402 | ball bearing 6303-ZC3 | 1 |
| 12 | 51908010076 | lock washer | 1 |
| 13 | 51906850023 | hexagon nut M17X1-5 | 1 |
