MAN Turbocharger 51091007216

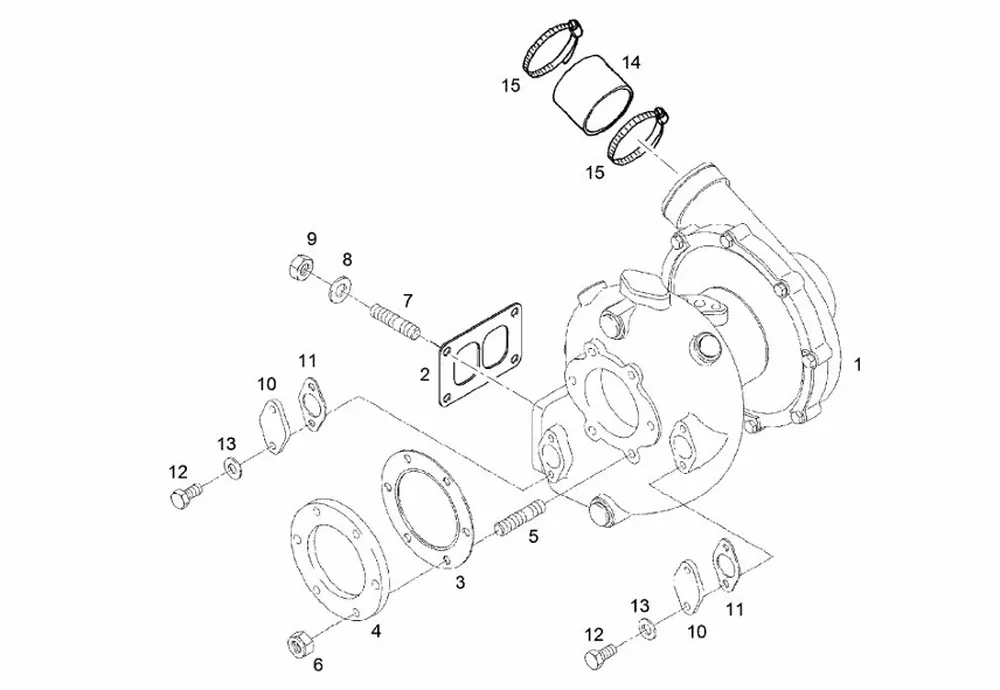

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.09100-7216, 51.09100.7216
- Engine model
- MAN D2866 LE, MAN D2866 LE30and 7 more
- Weight
- 25 kg
- Dimensions
- 280 × 250 × 330 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN turbocharger for the D2866 LE and LXE builds. A turbocharger has no bearing of its own in the usual sense: the shaft floats on a film of pressurised engine oil, and that film is the only thing holding a rotating assembly turning at tens of thousands of revolutions clear of its housing. Lose oil pressure and the two touch, which is why turbine failure from oil starvation happens in seconds rather than progressively, and why the overwhelming majority of failed turbochargers are the symptom of an oil problem rather than its cause. Before fitting a replacement, establish why the last one stopped: oil feed restriction, a blocked filter, extended oil change intervals or dilution will destroy the new unit exactly as efficiently. Prime the bearing housing with clean oil at installation and crank without firing until pressure is established.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51091007216 | turbocharger | 1 |
| — | 51965010588 | O-ring 210X3 | 1 |
| 2 | 51089010150 | Turbo charger seal | 1 |
| — | 51089010096 | gasket | 1 |
| 4 | 50981122384 | flange | 1 |
| 5 | 51902010173 | stud M10X30-GA-WARMFEST-C3J | 6 |
| 6 | 06112410306 | hex lock nut AM10-10-MAN183-B1 | 6 |
| 7 | 06062250810 | stud M10X40-8.8 | 4 |
| 8 | 06150130412 | washer 10X20X2-200HV-MAN183-B1 | 4 |
| 9 | 06110642115 | hexagon nut M10-8-MAN183-B1 | 4 |
| 10 | 51981120144 | rivetted flange | 2 |
| 11 | 06562542203 | gasket 26X48X1,0-AFOE2-M3219 | 2 |
| 12 | 06012835111 | hexagon screw M8X16-8.8-MAN183-B1 | 4 |
| 13 | 06150150411 | washer 8X16X1,6-300HV-MAN183-B1 | 4 |
| — | 51963300340 | hose 75X100-5 | 1 |
| — | 06671280529 | hose clamp S70-90 | 2 |
