MAN Intercooler 51095007050

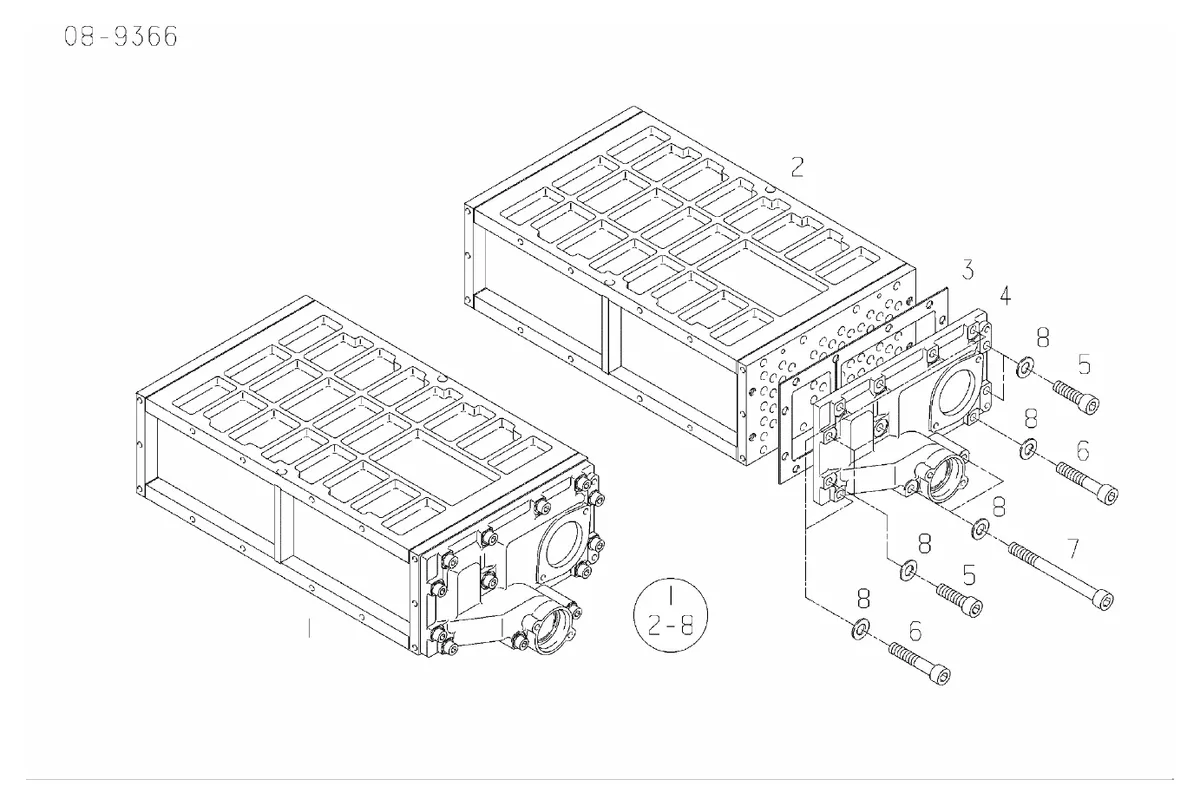

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.09500-7050, 51.09500.7050
- Replaces
- 51095007089
- Engine model
- MAN D2840 LE301, MAN D2840 LE302and 23 more
- Weight
- 76 kg
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN intercooler for the D2840 and D2842. Leaks are the failure that matters most on a charge-air cooler, and on a marine installation they have a particular significance: a water-cooled intercooler that has developed an internal leak can admit water into the charge air path, and water reaching a cylinder does not compress. That is a hydraulic loading risk rather than merely a performance problem. Pressure-testing the charge air side is the check that settles it, and it is worth doing whenever an engine has shown unexplained power loss or whenever a cylinder has suffered damage that nobody has accounted for. Any cylinder damage without an established cause on an engine with a water-cooled charge air cooler makes that test the obvious first step.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51095007072 | intercooler TITAN | 1 |
| 1 | 51095007050 | intercooler | 1 |
| 2 | 51095010018 | radiator core intercooler | 1 |
| 2 | 51095010013 | radiator core | 1 |
| 3 | 51099050058 | Intercooler seal | 1 |
| 4 | 51095030038 | flanged cover | 1 |
| 5 | 06020990167 | cylinder screw with hexagon socket M10X35-8.8-A3C | 5 |
| 6 | 06020990191 | cylinder screw with hexagon socket M10X55-8.8-A3C | 6 |
| 7 | 06021910523 | cylinder screw M10X110-10.9-MAN183-PHR with hexagon socket | 2 |
| 8 | 06150330814 | washer 10X18X1,6-200HV-MAN183-B1 | 13 |
| — | 06010149214 | hex shoulder stud M10X45-10.9-MAN183-PHR | 2 |
| — | 51907100394 | washer 11X21X4-9SMNPB28K-FE/ZN8/C | 2 |
Looking for an alternative?
Where available, we quote OEM-supplier or aftermarket alternatives separately, with price, lead time and warranty shown before you order.
