MAN Piston 51025117113

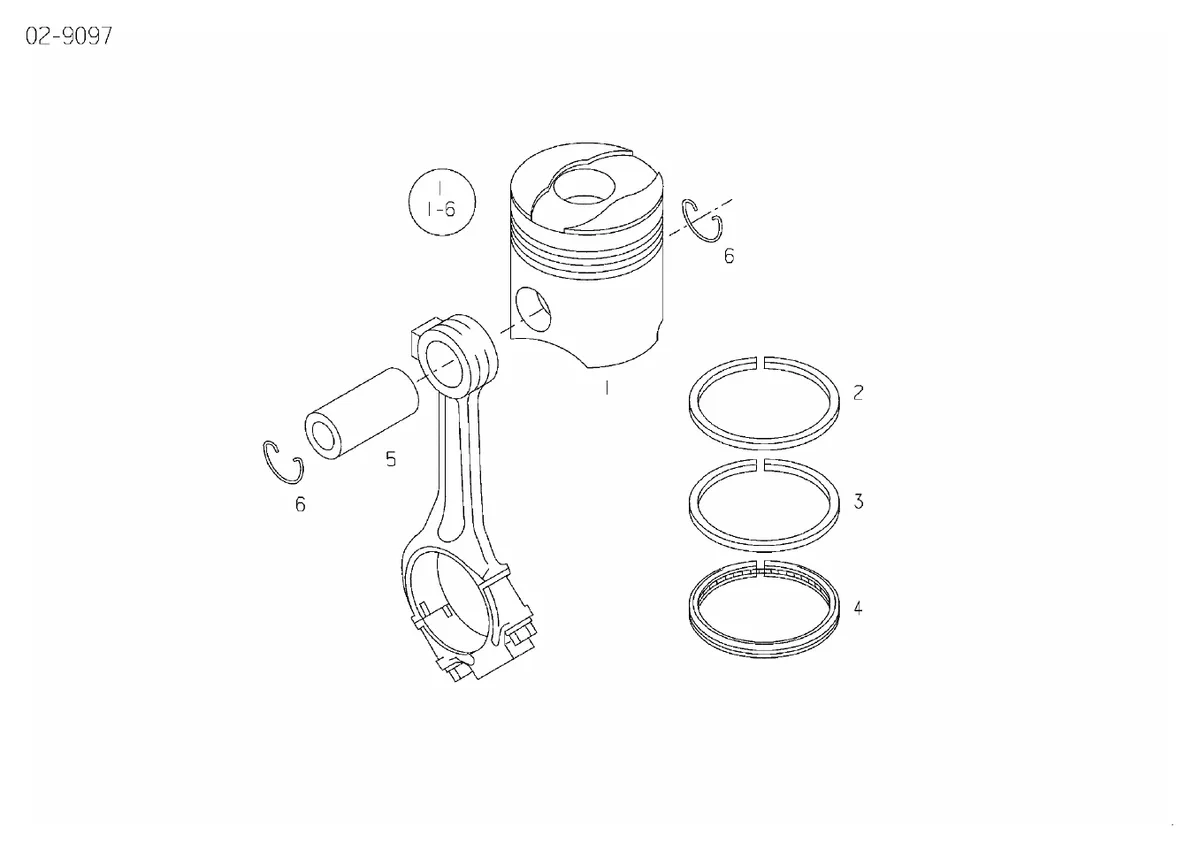

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.02511-7113, 51.02511.7113
- Description
- Engine piston kit 128.00 mm normal
- Replaces
- 51025006144
- Engine model
- MAN D2840 LE100, MAN D2840 LE200and 6 more
- Weight
- 3.59 kg
- Country of origin
- Germany
- Condition
- New
Numbers this part has been supplied under
- 51025006144
- 51025017400
- 51025117049
- 51025117113now
- 51025006144
- 51025017400
- 51025117049
- 51025117117
- 51025110097
- 51025010733
- 51025010735
About this part
Genuine MAN piston for the D2840, D2842 and D2848 families. Where one piston number covers several engine layouts, the shared component is the cylinder dimension , and nothing about the engine as a whole — a V8, a V10 and a V12 built around the same bore and stroke use the same piston, and the differences between them lie in how many of those cylinders there are and what is bolted around them. For a yard maintaining several of these engines that consolidates stock usefully. It also means a piston set removed from one engine type is legitimately usable in another, which matters when sourcing for an older build. Confirm bore and stroke against the engine rather than relying on the family name, since that is what the commonality actually rests on.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51025117113 | engine piston kit 128,00 MM normal | 12 |
| 1 | 51025117114 | piston assembly undersize 0,20 mm 128,00 MM | 12 |
| 1 | 51025117115 | piston assembly undersize 0,40 mm 128,00 MM | 12 |
| 2 | 51025030750 | keystone ring 128/117,8 X 3,5 | 12 |
| 3 | 51025030661 | taper face scraper ring 128/117,6 X 3 | 12 |
| 4 | 51025030651 | bevelled oil scraper ring 128,00 MM with spring expander | 12 |
| 5 | 51025020098 | piston pin | 12 |
| 6 | 51908100035 | snap ring 50,5X2-FST | 24 |
Alternatives to this part
| Type · Origin | Price | Saving | Lead time | Availability | Add to cart |
|---|---|---|---|---|---|
| OEMItaly1 dayIn stock | €52.07 | −91% | 1 day | In stock | |
| OEM1 dayIn stock | €176.25 | −71% | 1 day | In stock |
Per piece, excluding VAT and freight. Saving is against the price of this part. We confirm the exact number and fit before you order.
