MAN Piston 51025117342

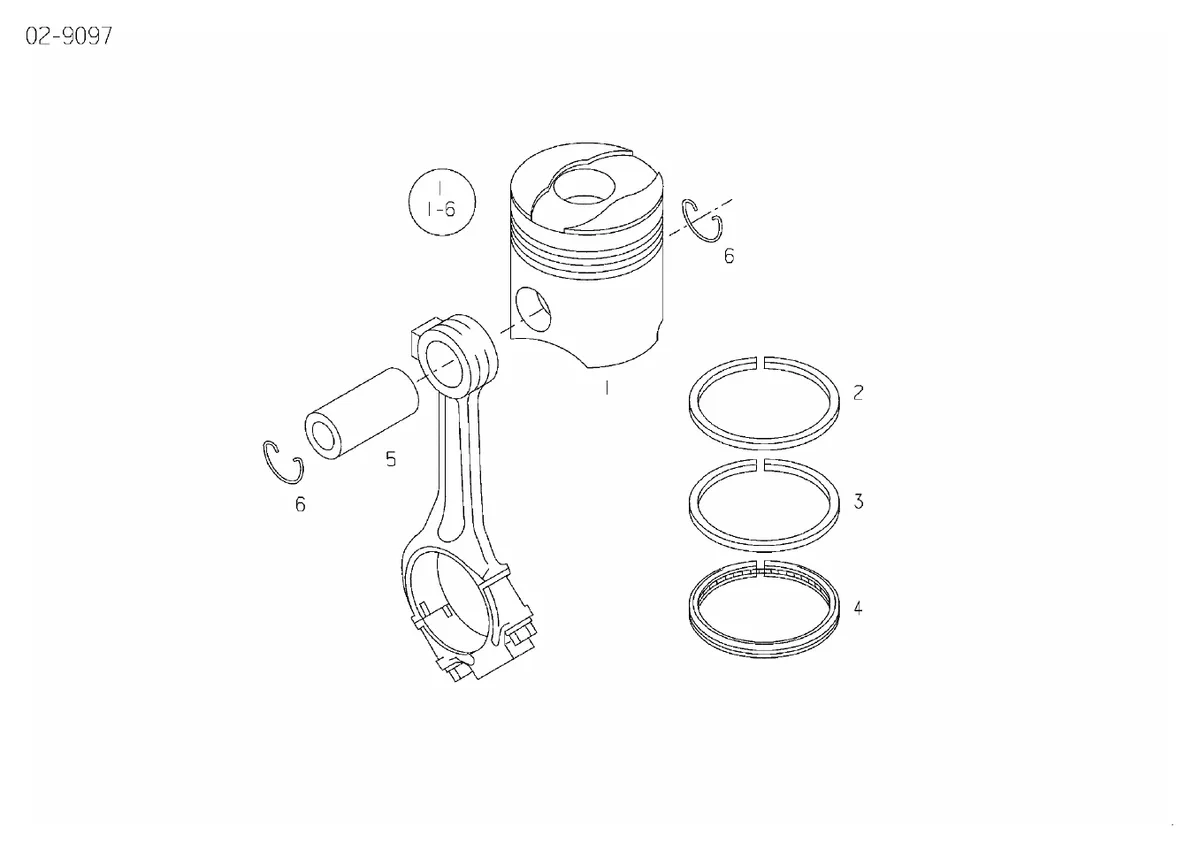

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.02511-7342, 51.02511.7342
- Description
- Engine piston kit 128.00 mm
- Engine model
- MAN D2866 LE401, MAN D2866 LE402and 2 more
- Weight
- 3.89 kg
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN piston for the D2866, the 11.97-litre in-line six. Fitting a piston is a job where the details carry the outcome: rings gapped and their gaps distributed around the piston instead of aligned, the ring compressor used properly so no ring catches the top of the liner, the piston oriented correctly in the bore according to its front marking, and the gudgeon pin retained by whatever method the design specifies. An error in any of them surfaces after the engine has run, never during assembly. Where the engine uses a directional piston — most diesels do, because the bowl is offset — the orientation mark is not optional. Confirm ring gaps in the bore they will actually run in; the set as supplied cannot be trusted for this, since gaps are specified for the finished bore.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51025117342 | engine piston kit 128,00 MM normal | 6 |
| 1 | 51025117343 | stationary engine piston assembly undersize 0,20 mm 128,00 MM | 6 |
| 1 | 51025117344 | stationary engine piston assembly undersize 0,40 mm 128,00 MM | 6 |
| 2 | 51025030752 | keystone ring | 6 |
| 3 | 51025030554 | taper face compression ring | 6 |
| 4 | 51025030806 | bevelled oil scraper ring | 6 |
| 5 | 51025020107 | piston pin | 6 |
| 6 | 51908100035 | snap ring 50,5X2-FST | 12 |
