MAN Raw Water Pump 51065006607

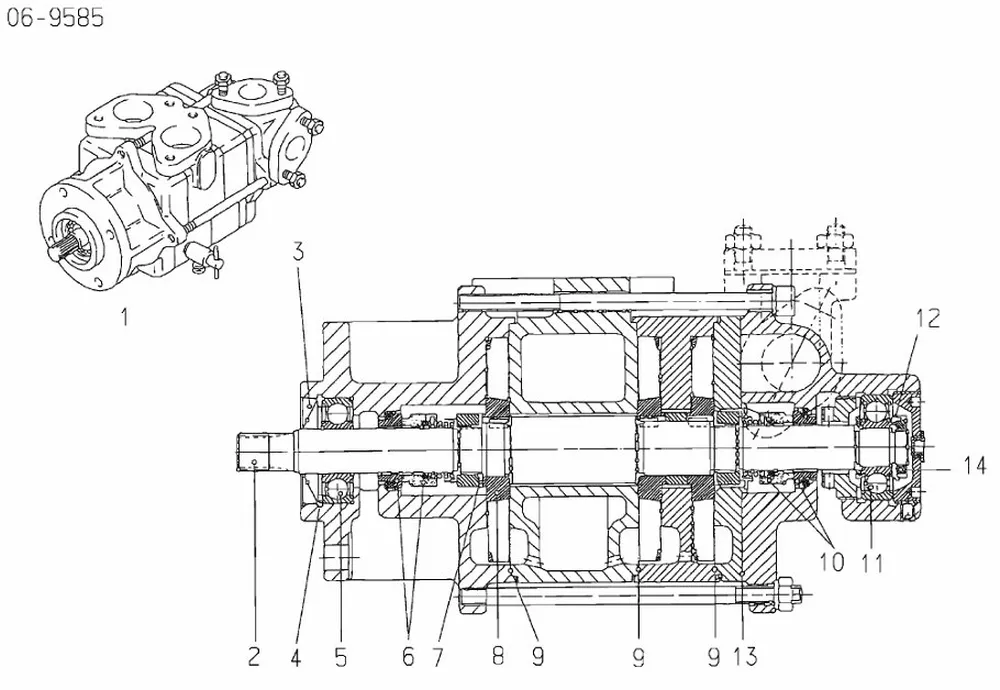

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06500-6607, 51.06500.6607
- Engine model
- MAN D2866 LE402, MAN D2866 LE403and 9 more
- Weight
- 13.58 kg
- Dimensions
- 180 × 170 × 320 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN raw water pump for the D2866 and D2876 in-line sixes. Inside a flexible impeller pump there is a wear plate and a cam, and both matter to how well the pump primes. The impeller vanes sweep against the cam to create the volume change that moves water, and they run against the wear plate at the end face — as that plate becomes grooved, the pump loses the ability to lift water on a dry start, even though it may still flow adequately once primed. An engine that has become reluctant to establish cooling flow after standing, but runs correctly once going, is usually describing a worn wear plate rather than a failing impeller. Both the plate and the cam are usually included in a full service kit, which is the argument for fitting the kit rather than the impeller alone.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51065006607 | raw water pump | 1 |
| 2 | 51065050072 | drive shaft raw water pump | 1 |
| 3 | 51965010407 | radial shaft seal 20X47X7-NB | 1 |
| 4 | 06290200128 | circlip 47X1,75-ZNPHR5F | 1 |
| 5 | 51934100104 | ball bearing 6204-2RSRC3 | 1 |
| 6 | 51065200056 | Axial face seal | 1 |
| 7 | 51908010075 | lock washer | 1 |
| 8 | 51065060082 | Impeller | 1 |
| 9 | 51069010093 | Coolant pump seal | 3 |
| 9 | 51069010094 | Coolant pump seal | 2 |
| 10 | 51065200055 | Axial face seal | 1 |
| 11 | 06314600402 | ball bearing 6303-ZC3 | 1 |
| 12 | 51908010076 | lock washer | 1 |
| 13 | 51069010191 | Coolant pump seal | 1 |
| 14 | 51906850023 | hexagon nut M17X1-5 | 1 |
| — | 51981250003 | drain valve raw water pump | 1 |
| — | 51960020061 | plug 9,2X5,5-14-PE-NF | 1 |
| — | 51915020002 | key | 1 |
