MAN Coolant expansion tank assembly 51061026103

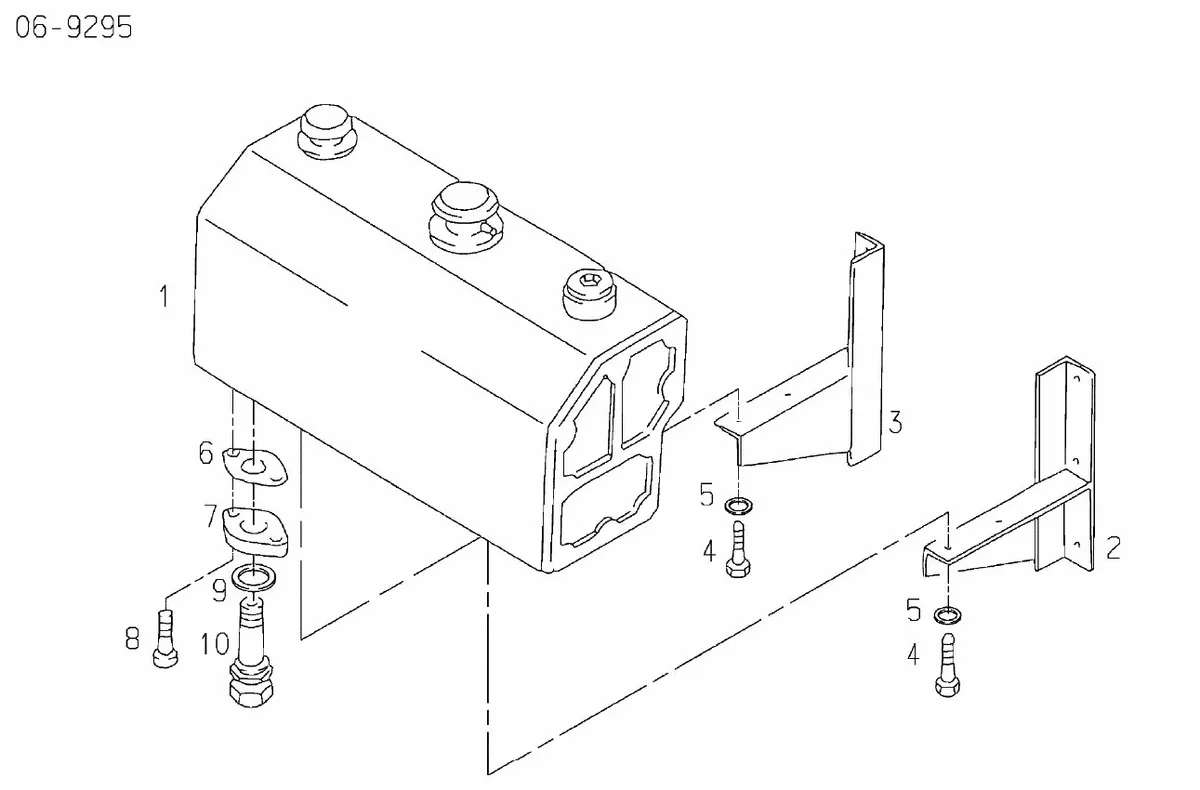

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06102-6103, 51.06102.6103
- Replaces
- 50061026047
- Engine model
- MAN D2866 E, MAN D2866 LEand 12 more
- Weight
- 18.08 kg
- Dimensions
- 310 × 265 × 700 mm
- Country of origin
- Germany
- Condition
- New
About this part
Genuine MAN coolant expansion tank assembly. An assembly rather than a bare tank normally includes the cap and the fittings, which is worth confirming before ordering — the cap is the component that actually determines system pressure, and it is not interchangeable between systems rated differently. No weight or dimensions appear in MAN's data for this number, so the engine's own parts documentation is the route to identification. Confirm in particular whether the cap is included, because it is the part that sets system pressure.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51061026103 | coolant expansion tank assembly | 1 |
| 2 | 50061405086 | bracket left | 1 |
| 3 | 50061405085 | bracket right | 1 |
| 4 | 06012890157 | hexagon screw M10X22-8.8-MAN183-A3C | 4 |
| 5 | 06150130412 | washer 10X20X2-200HV-MAN183-B1 | 4 |
| 6 | 06562572429 | gasket 42X68X2-AFOE4-M3219 | 1 |
| 7 | 50981120174 | flange | 1 |
| 8 | 06021900508 | cylinder screw with hexagon socket M10X22-8.8-MAN183-ZNPHR3F | 2 |
| 9 | 06561900736 | seal A33X39-CU | 1 |
| 10 | 06710100412 | pipe union DL28A-ST | 1 |
