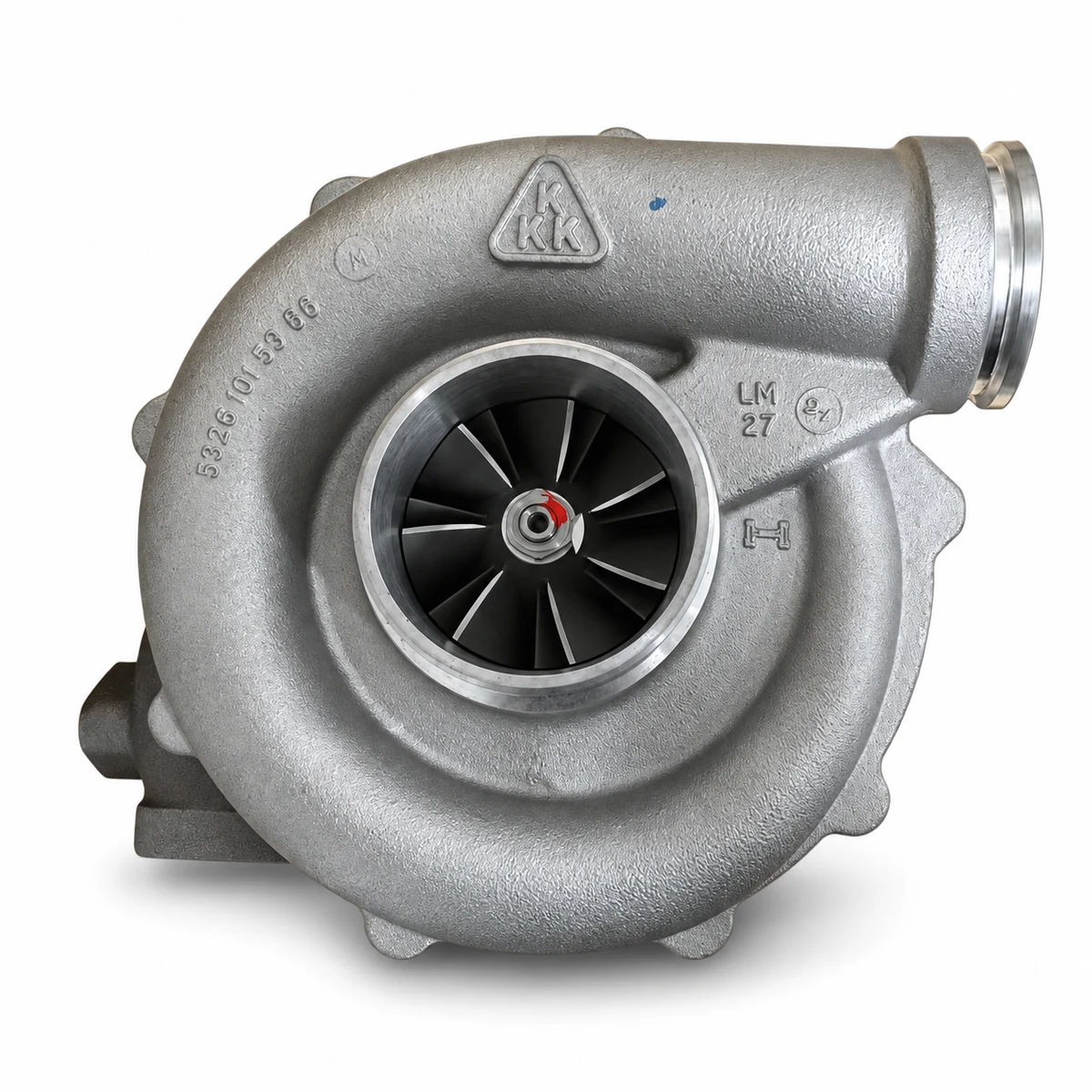

MAN Turbocharger 51091007312
- Manufacturer
- MAN
- Also written as
- 51.09100-7312, 51.09100.7312
- Engine model
- MAN D2840 LE301, MAN D2840 LE302and 36 more
- Weight
- 22.57 kg
- Dimensions
- 302 × 285 × 302 mm
- Country of origin
- Poland
- Condition
- New
About this part
Genuine MAN turbocharger for the D2842 LE301, LE302 and the LE403-420 build range. The habit that kills more marine turbochargers than any mechanical defect is shutting the engine down straight off load. The rotating assembly keeps spinning after the oil pump has stopped, and the heat soaking out of the turbine housing cooks the oil left in the bearing housing into hard carbon — which then restricts the oil feed for every subsequent start. Idling for a few minutes before shutdown lets the turbine slow and the housing temperature fall while oil is still circulating, and costs nothing but patience at the quay. On a working boat that has been pushing hard against a tide, it is the single cheapest piece of turbocharger maintenance available. This number is also listed as a remanufactured exchange unit.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51091007312 | turbocharger | 2 |
| — | 51965010588 | O-ring 210X3 | 2 |
| 2 | 51089010105 | Turbo charger seal | 2 |
| 2 | 51089010385 | Turbo charger seal | 2 |
| 3 | 06062250809 | stud M10X35-8.8 | 3 |
| 4 | 06112512001 | hex lock nut M10-10-MAN183-B1 | 3 |
| 5 | 06010190148 | hex shoulder stud M10X170-8.8-A3C | 2 |
| 6 | 06012835218 | hexagon screw M10X35-8.8-MAN183-B1 | 3 |
| 7 | 06010190141 | hex shoulder stud M10X140-8.8-A3C | 3 |
| 8 | 06010137223 | hex shoulder stud M10X90-8.8-MAN183-B1 | 1 |
| 9 | 51081056068 | diffusor | 2 |
| 10 | 51159010035 | gasket | 2 |
| 10 | 51159010067 | gasket intermediate flange | 2 |
| 10 | 51159010393 | gasket | 2 |
| 11 | 06062260808 | stud M10X30-10.9 | 10 |
| 12 | 06112512001 | hex lock nut M10-10-MAN183-B1 | 10 |
| 13 | 06062250710 | stud M8X40-8.8 | 4 |
| 14 | 06110642114 | hexagon nut M8-8-MAN183-B1 | 4 |
| 15 | 06080990025 | drain plug AM14X1,5-ST-MAN183-B1 | 4 |
| 16 | 06561900706 | seal A14X20-CU | 4 |
| 16 | 06566310235 | seal 14,3X22X1,5-ST/FKM1-80 with elastomer lip | 4 |
| 17 | 51152012150 | flange | 2 |
| 18 | 51159010036 | gasket | 2 |
| 19 | 06012835220 | hexagon screw M10X45-8.8-MAN183-B1 | 16 |
| 20 | 06112400406 | hex lock nut BM10-8-MAN183-B1 | 16 |
| 21 | 51096007001 | valve charge-air pressure | 2 |
| 22 | 51099030003 | Exhaust manifold seal | 2 |
| 23 | 06021920306 | cylinder screw with hexagon socket M6X18-8.8-A2C | 6 |
| 24 | 51963410192 | hose pipe 360 MM | 1 |
| 25 | 51963410191 | hose pipe 770 MM | 1 |
| 26 | 51981310173 | threaded union | 2 |
| 27 | 06561800709 | seal A8X11,5-CU | 2 |
| 27 | 06566310232 | seal 8,3X14X1-ST/FKM1-80 with elastomer lip | 2 |
| 28 | 06711302106 | T-union T-L8-MAN183-B1 | 1 |
| 29 | 06673002230 | clamp D1-22X20-W4-EPDM | 1 |
| 30 | 06673001530 | clamp D1-15X20-W4-EPDM | 1 |
| 31 | 51907100636 | washer 9X19X4 | 1 |
| 32 | 06012835112 | hexagon screw M8X18-8.8-MAN183-B1 | 1 |
| 33 | 06110642114 | hexagon nut M8-8-MAN183-B1 | 1 |
| 34 | 06150150411 | washer 8X16X1,6-300HV-MAN183-B1 | 1 |
| 35 | 04903009030 | sealant 60 ML tube | NB |
