MAN Piston 51025117164

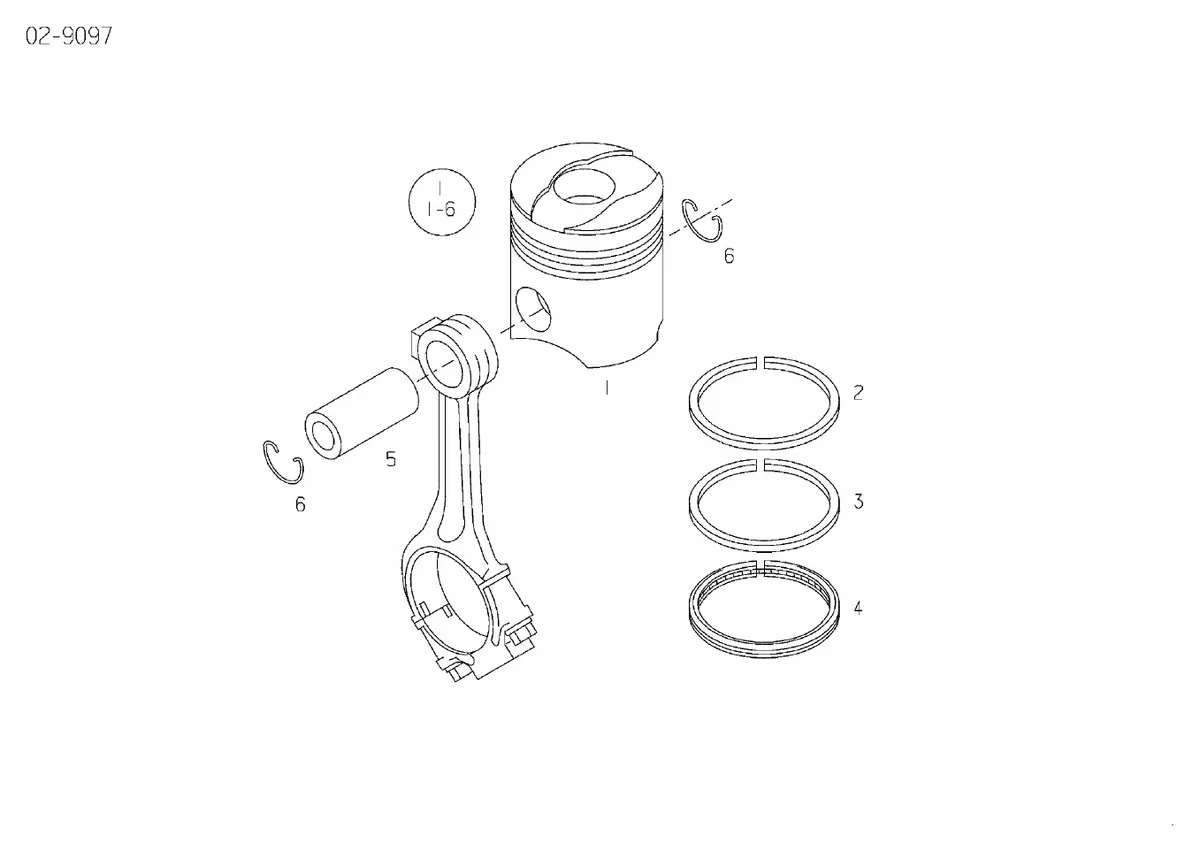

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.02511-7164, 51.02511.7164
- Description
- Stationary engine piston 128.00 mm normal
- Replaces
- 51025117141, 51025117168
- Engine model
- MAN D2840 LE401, MAN D2842 LE400and 12 more
- Weight
- 3.52 kg
- Country of origin
- Germany
- Condition
- New
Numbers this part has been supplied under
- 51025117141
- 51025117168
- 51025117145
- 51025117164now
- 51025117141
- 51025117168
- 51025117145
- 51025110190
- 51025110194
About this part
Genuine MAN piston for the D2840, D2842 and D2848 families. Ring condition rather than piston condition usually determines whether a piston is reusable, and the two are assessed separately. A piston with sound skirt dimensions, an undamaged crown and clean, square ring grooves can be reused with a new ring set; one whose grooves have worn wider than specification cannot, because the new rings will flutter in them and neither seal nor last. Groove wear is measured with a new ring and a feeler gauge, which is a quick check on the bench and the one that most often decides between a ring set and a piston set. Where groove wear is borderline, replacing the piston is the cheaper decision once the labour of a second strip-down is counted.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51025117164 | stationary engine piston 128,00 MM normal | 4 |
| 1 | 51025117168 | stationary engine piston assembly normal 128,00 MM | 4 |
| 1 | 51025117165 | stationary engine piston assembly undersize 0,20 mm 128,00 MM | 4 |
| 1 | 51025117166 | stationary engine piston assembly undersize 0,40 mm 128,00 MM | 4 |
| 1 | 51025117169 | stationary engine piston assembly undersize 0,20 mm 128,00 MM | 4 |
| 1 | 51025117170 | stationary engine piston assembly undersize 0,40 mm 128,00 MM | 4 |
| 1 | 51025117225 | engine piston kit 128,00 MM normal | 8 |
| 1 | 51025117226 | stationary engine piston assembly undersize 0,20 mm 128,00 MM | 8 |
| 1 | 51025117227 | stationary engine piston assembly undersize 0,40 mm 128,00 MM | 8 |
| 2 | 51025030750 | keystone ring 128/117,8 X 3,5 | 8 |
| 2 | 51025030752 | keystone ring | 8 |
| 3 | 51025030661 | taper face scraper ring 128/117,6 X 3 | 8 |
| 3 | 51025030554 | taper face compression ring | 8 |
| 4 | 51025030651 | bevelled oil scraper ring 128,00 MM with spring expander | 8 |
| 4 | 51025030806 | bevelled oil scraper ring | 8 |
| 5 | 51025020098 | piston pin | 8 |
| 5 | 51025020107 | piston pin | 8 |
| 6 | 51908100035 | snap ring 50,5X2-FST | 16 |
Alternatives to this part
| Type · Origin | Price | Saving | Lead time | Availability | Add to cart |
|---|---|---|---|---|---|
| OEMItaly1 dayIn stock | €52.07 | −96% | 1 day | In stock | |
| OEM1 dayIn stock | €233.63 | −82% | 1 day | In stock |
Per piece, excluding VAT and freight. Saving is against the price of this part. We confirm the exact number and fit before you order.
