MAN Raw Water Pump 51065007042

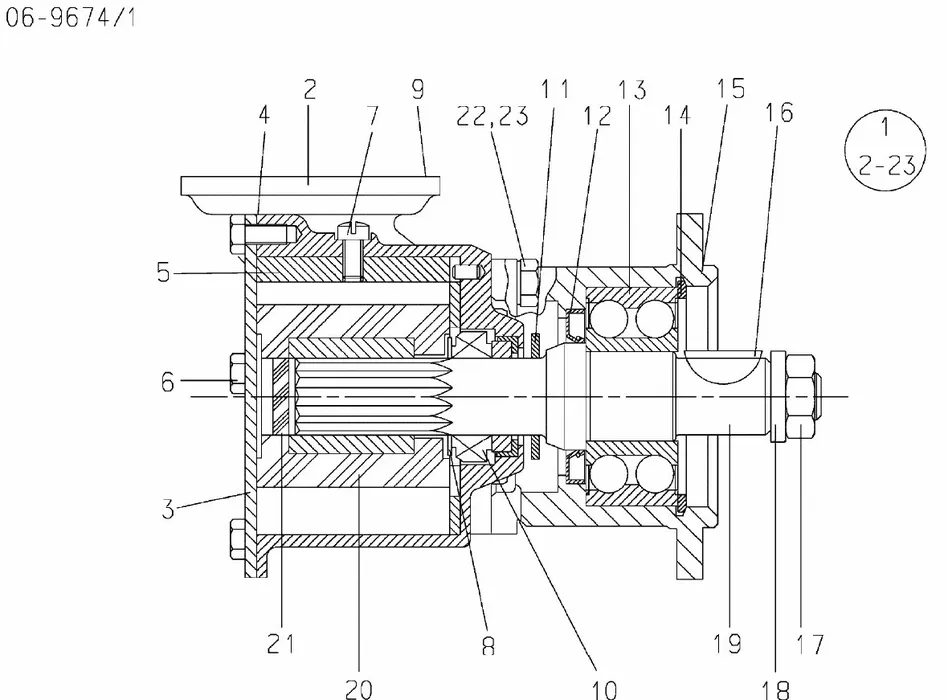

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06500-7042, 51.06500.7042
- Engine model
- MAN D0836 LE301, MAN D0836 LE311and 1 more
- Weight
- 7.11 kg
- Dimensions
- 185 × 240 × 235 mm
- Country of origin
- United Kingdom
- Condition
- New
About this part
Genuine MAN raw water pump for the D0836, MAN's truck-derived 6.9-litre in-line six adapted for marine use. The raw water side is the part of a marinised engine with no road-going equivalent, and it is where most marine-specific failures on a block of this origin begin. Everything else about the engine has a service history measured in millions of road units; the seawater pump, the heat exchanger and the exhaust elbow do not. That is worth remembering when maintenance is planned by analogy with the truck engine, since the intervals that matter most on a boat are the ones the truck schedule has nothing to say about. Build the raw water side into the service schedule explicitly ; assumption is what catches people out the engine's own intervals cover it.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51065007042 | raw water pump | 1 |
| 2 | 51065010311 | water pump housing | 1 |
| 3 | 50065120028 | cover raw water pump 5-hole | 1 |
| 3 | 51065120045 | cover raw water pump 4-hole | 1 |
| 4 | 50069010086 | Coolant pump seal | 1 |
| 4 | 51965010580 | seal | 1 |
| 5 | 51065200098 | excentric | 1 |
| 6 | 51900010228 | hexagon screw | 5 |
| 6 | 51900010245 | hexagon screw M6X12-A2-70 | 4 |
| 7 | 50901010008 | pan-head screw 1/4"-20UNCX12,7-CUZN | 1 |
| 8 | 51907100457 | washer | 1 |
| 9 | 50065200045 | wear plate | 1 |
| 10 | 51065200097 | Axial face seal | 1 |
| — | 51065996088 | Axial face seal set | 1 |
| 11 | 50907200142 | splash deflector | 1 |
| 12 | 50065200044 | Coolant pump seal | 1 |
| 13 | 50934100062 | ball bearing | 1 |
| 14 | 50908150021 | circlip | 1 |
| 15 | 50065010175 | gear carrier raw water pump | 1 |
| 16 | 50976510030 | key | 1 |
| 17 | 51905010094 | hexagon nut | 1 |
| 18 | 50907200141 | washer | 1 |
| 19 | 51065050075 | drive shaft raw water pump | 1 |
| 20 | 51065060122 | Impeller | 1 |
| 21 | 50065200047 | grease cap | 1 |
| 22 | 50900010114 | hexagon screw 5/16"-18UNCX3/4"-A2-SW1/2" | 4 |
| 23 | 50908010070 | spring washer | 4 |
| — | 51065120045 | cover raw water pump 4-hole | 1 |
