MAN Tube Bundle 51061090041

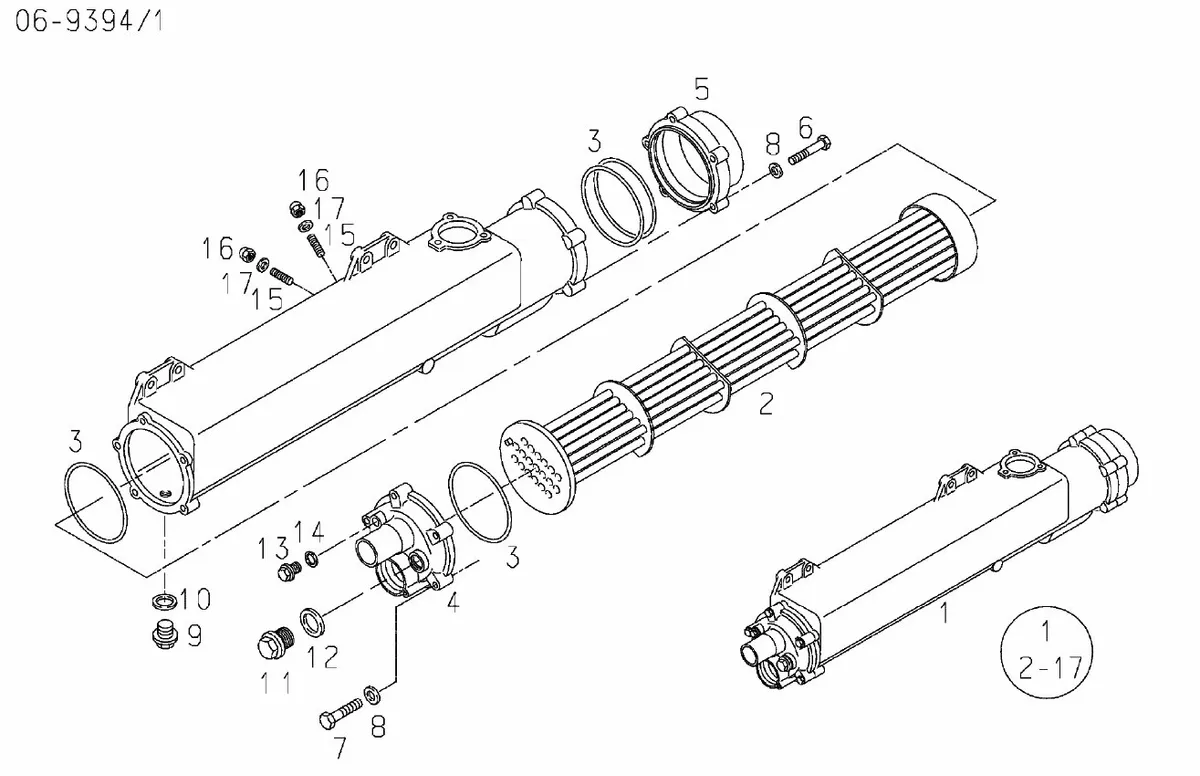

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06109-0041, 51.06109.0041
- Replaces
- 51061090044
- Engine model
- MAN D2866 LE401, MAN D2866 LE402and 15 more
- Weight
- 11.19 kg
- Dimensions
- 157 × 157 × 900 mm
- Country of origin
- France
- Condition
- New
Numbers this part has been supplied under
- 51061090044
- 51061007022
- 51061017175
- 51061090041now
- 51061090044
- 51061007022
- 51061017175
- 51061090028
- 51061017173
- 51061090021
- 51061017162
- 51061090020
- 51061017161
About this part
Genuine MAN heat exchanger tube bundle for the D2866 and D2876 in-line sixes. The bundle is the working part of a marine heat exchanger: raw water is pumped through the inside of its tubes while engine coolant circulates around the outside, and heat crosses the tube wall between them. Tubes for this duty are normally cupronickel or, on some applications, titanium, chosen because ordinary copper or steel would not survive continuous seawater flow. The bundle is also the part that fouls — scale, silt and marine growth build up inside the tubes and reduce heat transfer long before they block flow entirely. An engine that has slowly become less tolerant of full load on a hot day is usually describing a bundle that needs cleaning rather than a cooling system that has failed.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51061017149 | heat exchanger assembly (03.96) | 1 |
| 1 | 51061017161 | heat exchanger assembly (36.96) | 1 |
| 1 | 51061017162 | heat exchanger assembly (03.97) | 1 |
| 1 | 51061017161 | heat exchanger assembly (31.97) | 1 |
| 1 | 51061017162 | heat exchanger assembly | 1 |
| 2 | 51061090041 | tube bundle | 1 |
| 3 | 06569303799 | O-ring 132X5-NBR3-70 | 4 |
| 4 | 51061120006 | cover (03.96) | 1 |
| 4 | 51061120013 | cover | 1 |
| 5 | 51061120005 | reversing chamber | 1 |
| 6 | 06012835120 | hexagon screw M8X45-8.8-MAN183-B1 | 5 |
| 7 | 06012835123 | hexagon screw M8X60-8.8-MAN183-B1 | 5 |
| 8 | 06150150411 | washer 8X16X1,6-300HV-MAN183-B1 | 10 |
| 9 | 51903100241 | drain plug M14X1,5X9-CUZN39PB3-SW19 | 1 |
| 10 | 06561900706 | seal A14X20-CU | 1 |
| 11 | 06080660150 | drain plug G3/4"A-CUZN | 1 |
| 12 | 06561900729 | seal A27X32-CU | 1 |
| 13 | 06080620203 | drain plug M14X1,5-ST-ZNPHR3F | 1 |
| 14 | 06561900706 | seal A14X20-CU | 1 |
