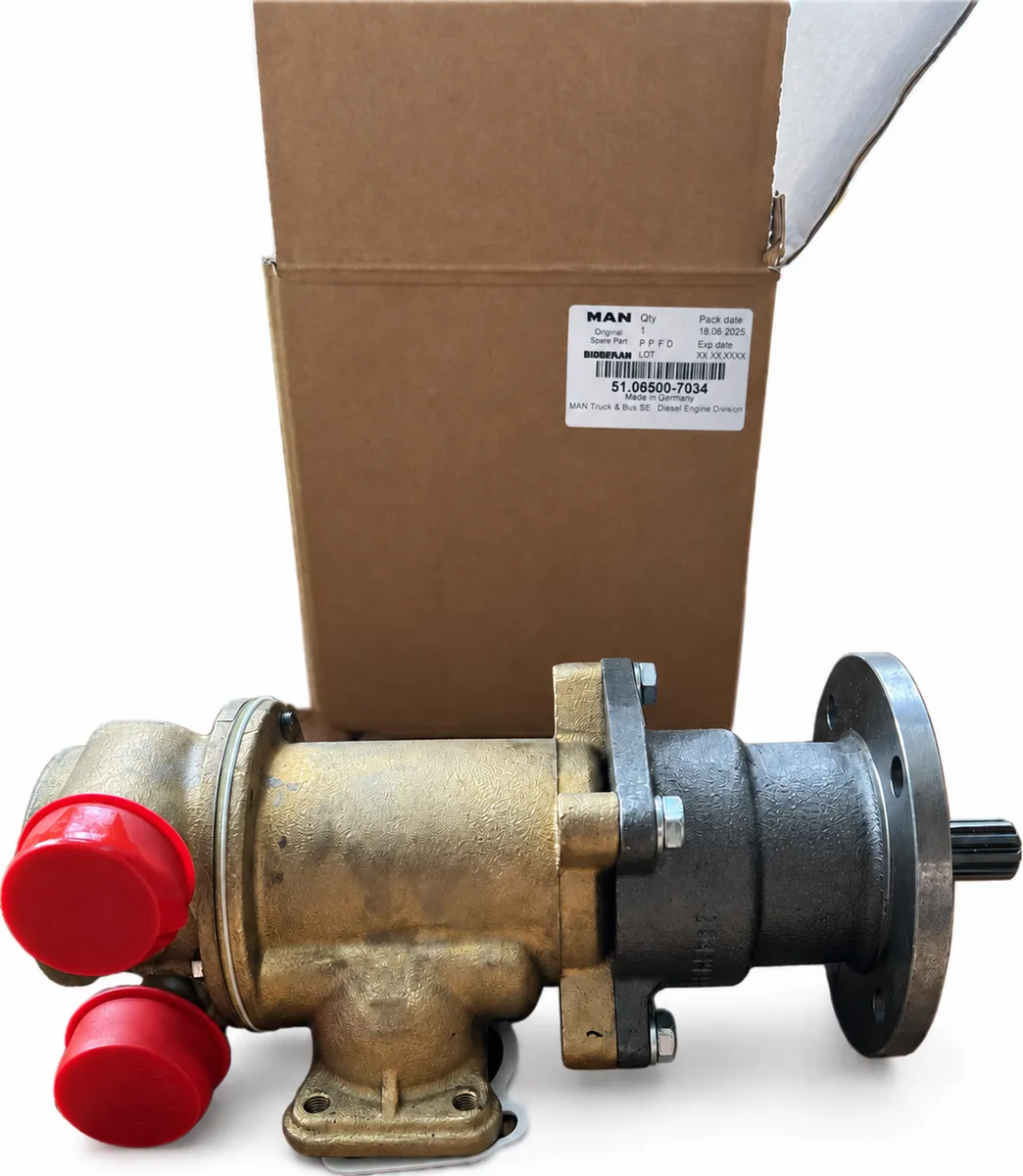

MAN Raw Water Pump 51065007034
- Manufacturer
- MAN
- Also written as
- 51.06500-7034, 51.06500.7034
- Engine model
- MAN D2866 LE401, MAN D2866 LE402and 2 more
- Weight
- 6.55 kg
- Dimensions
- 140 × 120 × 280 mm
- Country of origin
- Sweden
- Condition
- New
About this part
Genuine MAN raw water pump for the D2866, the 11.97-litre in-line six. Everything upstream of the pump determines how long it lasts, and the list is short enough to check properly: the seacock, the strainer and its basket, the intake hose and its internal condition. Intake hoses fail from the inside as they age, delaminating and collapsing under suction without any external sign, and a partially collapsed hose starves the pump exactly as a blocked strainer would while looking perfectly sound. Where a pump has failed prematurely, the useful question is what it was trying to draw through, since replacing the pump alone leaves the restriction in place. Squeezing an intake hose by hand while the engine runs is a crude test that finds a surprising number of collapsed ones.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 51065007034 | raw water pump | 1 |
| 2 | 51065010246 | excentric | 1 |
| 3 | 51065060103 | Impeller | 1 |
| 4 | 51065050069 | shaft | 1 |
| 5 | 51907200183 | washer | 1 |
| 6 | 51069010165 | Coolant pump seal | 1 |
| 7 | 50065200063 | wear plate | 2 |
| 7 | 51065200116 | wear plate | 1 |
| 8 | 51913010104 | pin | 2 |
| 9 | 51917010820 | spacer bush | 1 |
| 10 | 50907200149 | slinger | 1 |
| 11 | 50908150028 | circlip | 2 |
| 12 | 06290200135 | circlip 60X2,00-ZNPHR5F | 1 |
| 13 | 51907200184 | washer | 1 |
| 14 | 51065200081 | Axial face seal | 1 |
| 15 | 51069010166 | Coolant pump seal | 1 |
| 16 | 06314506302 | ball bearing 6205-2RSC3 | 1 |
| 17 | 51934100100 | ball bearing 6305-2LSC4-BB | 1 |
| 18 | 06013251011 | hexagon screw M5X16-A4-70 | 4 |
| 19 | 06042590051 | cylinder screw M8X12-CU7 | 1 |
| 20 | 06012833115 | hexagon screw M8X25-8.8-A2C | 4 |
| 21 | 51908100036 | spring washer | 4 |
| 22 | 51065010247 | water pump housing | 1 |
| 23 | 51065010244 | excentric | 1 |
| 24 | 50065060091 | Impeller | 1 |
| 25 | 51900300073 | cylinder screw NR12-24X10-CUZN39 | 1 |
| 26 | 51069010167 | Coolant pump seal | 1 |
| 27 | 51065996064 | Water pump repair kit | 1 |
