MAN Raw Water Pump 51065007026

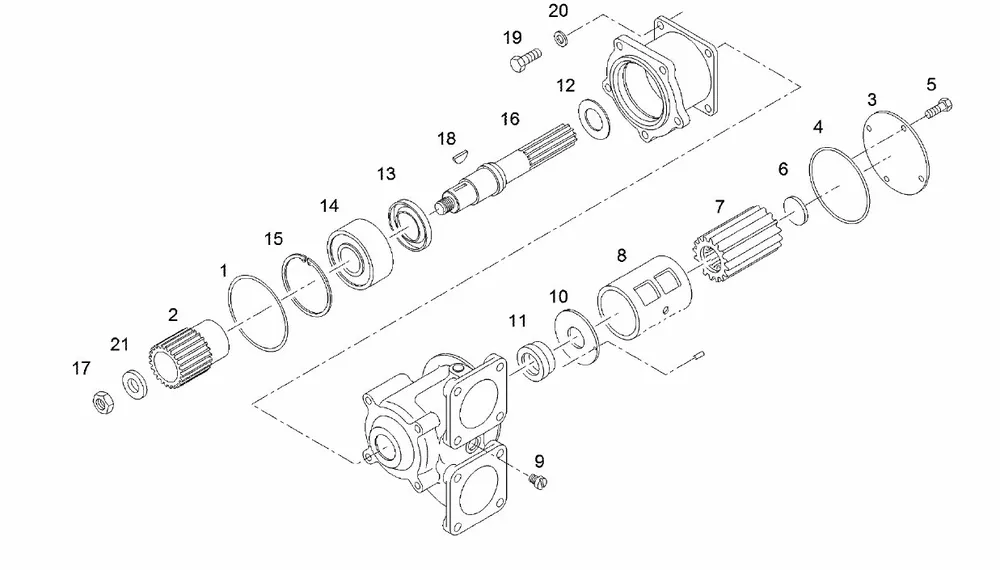

Exploded view. Numbers match the components list below.
- Manufacturer
- MAN
- Also written as
- 51.06500-7026, 51.06500.7026
- Engine model
- MAN D2676 4.., MAN D2676 LE3..and 61 more
- Weight
- 8.1 kg
- Dimensions
- 200 × 130 × 230 mm
- Country of origin
- United Kingdom
- Condition
- New
About this part
Genuine MAN raw water pump covering the D2866, D2876, D2848, D2840 and D2676 families. A pump number spanning this many engines is worth knowing about for stock reasons, and it reflects the fact that raw water flow requirement scales with heat rejection rather than with cylinder count. What does not carry across between installations is the drive arrangement and the plumbing, so a pump correct by part number still needs its pulley, mounting and hose connections to match the engine it is going onto. Check those before ordering rather than discovering a difference with the old pump already off and the boat committed. A photograph of the old pump in place, taken before it comes off, answers most of those questions later.
Supplied new, in the manufacturer’s packaging, with our warranty of up to 24 months.
Engines this part fits
Components of this assembly
| Pos. | Part number | Name | Qty |
|---|---|---|---|
| 1 | 06569362946 | O-ring 84X3N-FKM1-70-GN | 1 |
| 2 | 51385090006 | hub | 1 |
| 3 | 50065120028 | cover raw water pump 5-hole | 1 |
| 3 | 51065120045 | cover raw water pump 4-hole | 1 |
| 4 | 50069010086 | Coolant pump seal | 1 |
| 4 | 51965010580 | seal | 1 |
| 5 | 51900010226 | hexagon screw | 5 |
| 5 | 51900010245 | hexagon screw M6X12-A2-70 | 4 |
| 6 | 50065200047 | grease cap | 1 |
| 7 | 50065060073 | Impeller | 1 |
| 8 | 51065050065 | excentric water pump | 1 |
| 9 | 50901010009 | pan-head screw 1/4"-20UNCX9,5-CUZN | 1 |
| 10 | 50065200045 | wear plate | 1 |
| 11 | 51065996088 | Axial face seal set | 1 |
| 12 | 50907200142 | splash deflector | 1 |
| 13 | 50065200044 | Coolant pump seal | 1 |
| 14 | 06314807675 | ball bearing 3306-2Z | 1 |
| 15 | 50908150021 | circlip | 1 |
| 16 | 51065050064 | water pump shaft | 1 |
| 17 | 51905010094 | hexagon nut | 1 |
| 18 | 50976510030 | key | 1 |
| 19 | 50900010114 | hexagon screw 5/16"-18UNCX3/4"-A2-SW1/2" | 4 |
| 20 | 50908010070 | spring washer | 4 |
| 21 | 50907200141 | washer | 1 |
| — | 50065996027 | Water pump repair kit | 1 |
